In this post, I will show you step by step walkthrough to publish a cloud project in Windows Azure

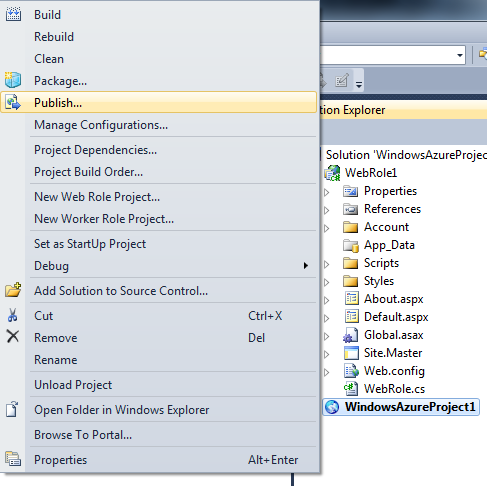

Right click on the cloud project and select Publish

clip_image001

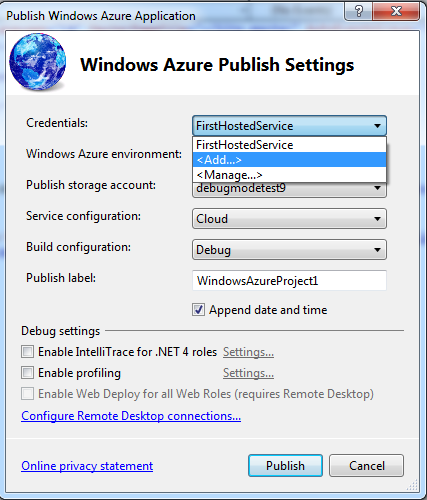

Windows Azure publish setting wizard will be open.

clip_image002

First you need to set the credentials. I assume here that you have not set any credential before so choose Add from the drop down

clip_image003

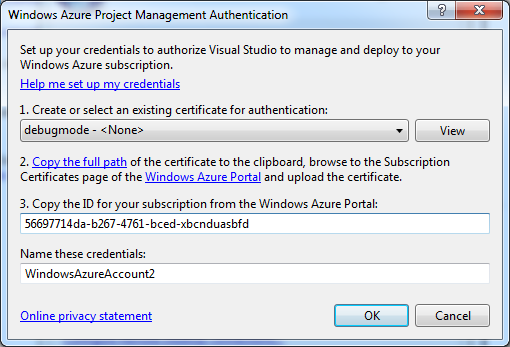

You will get Windows Azure Project Management authentication wizard. First task you need to do is either selected or create certificate for authentication.

Read here to create X.509 certificate

Read here to upload Management certificate

In drop down you will get all created certificate to choose. Select the desired certificate. Select certificate and copy your subscription Id. Give some name to this authentication setting such that you may use it later.

clip_image004

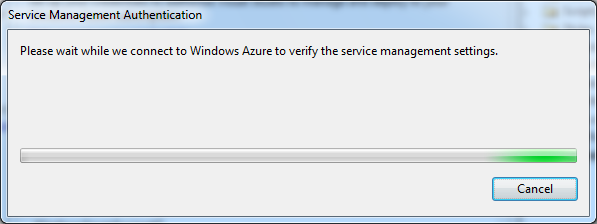

After giving all the required values, it will verify the service management authentication setting from Azure portal.

clip_image005

Once setting is verified, next you will have to choose the hosted service environment to publish the project. I am choosing PivotTestDebugMode-staging environment to publish.

clip_image006

After choosing hosted service environment, you will have to choose storage account from the drop down.

clip_image007

Now choose service configuration would be from Cloud or Local in dropdown.

clip_image008

Now choose build configuration in dropdown.

clip_image009

In last step you need to provide label for publish You can choose either to append date time with label or not.

clip_image010

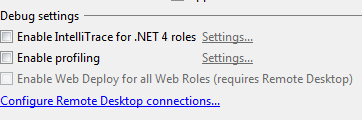

If you want you can set the debug settings as well. In later posts we will see more on Debug settings J

clip_image011

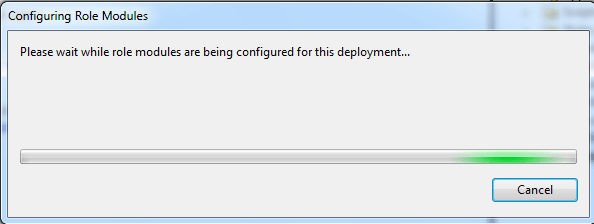

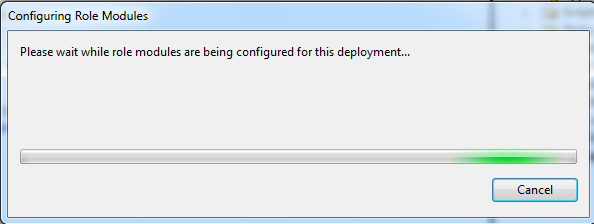

And after providing the entire required information click on Publish button. You will see Role Modules are being configured.

clip_image012

In bottom you can see the log and status of the deployment.

clip_image014

I hope this post is useful. Thanks for reading Smile
