Windows Azure for Developers Task 8: Working with WCF Service Web Role

WCF Service Role enables us to create WCF service and host in Windows Azure. In this article, we will create a WCF Service Role and host on local development fabric and consume in a console application. In second part of this article we will move WCF Service to Azure portal.



To start with,

1. Create a New Project

2. Navigate to cloud tab

3. Create Windows Azure Project

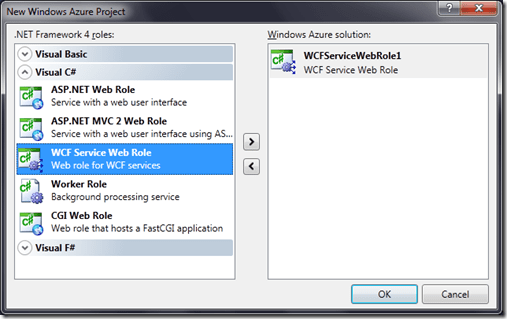

4. Select WCF Service Role from given options.



clip_image001



If you give a look in solution explorer, you will find in WCF Service Role project contains exactly the same structure and files as of when you create a normal WCF Service Application. It contains ,



1. IService1.cs (Service Contract )
2. Service1.svc.cs ( Service definition file )
3. Web.config ( configuration for EndPoints)



We can modify these files accordingly for our purpose in exactly the same way; we do in usual WCF Service Application.



Let us modify Service Contract as below,



IService1.svc


using System.ServiceModel;

namespace WCFServiceWebRole1
{
 [ServiceContract]
 public interface IService1
 {

[OperationContract]
 string GetData(int value);

 }
}



And service definition would be,



Service1.svc.cs

namespace WCFServiceWebRole1
{

 public class Service1 : IService1
 {
 public string GetData(int value)
 {
 return string.Format("You entered: {0}", value);
 }

 }
}





Leave default configuration in Web.Config



Make sure you have set Windows Azure project as Startup project and run the application. In browser you will get below error message.



clip_image003



Ignore this message and append service.svc with URL, so now URL would be http://127.0.0.1:81/service1.svc. Service.svc is name of the service definition.
After appending you will get usual WCF Service message in browser.



clip_image005



To test this WCF Service role in a console client,



1. Create a console application project
2. Add Service Reference by providing URL http://127.0.0.1:81/service1.svc



clip_image006



Now we will make a normal service call,



Program.cs

using System;
using ConsoleApplication14.ServiceReference1;

namespace ConsoleApplication14
{
 class Program
 {
 static void Main(string[] args)
 {
 Service1Client proxy = new Service1Client();
 var result = proxy.GetData(99);
 Console.WriteLine(result);
 Console.ReadKey(true);
 }
 }
}





Now when you run you may or may not get below exception.



clip_image007



To solve above exception, we have to edit App.Config file. We need to change



clip_image009

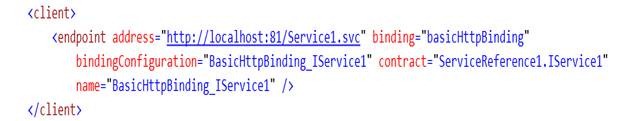

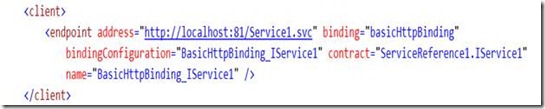

127.0.0.1 to localhost. Because it might be the case console application is not able to resolve 127.0.0.1 . we need to change to localhost.
clip_image011

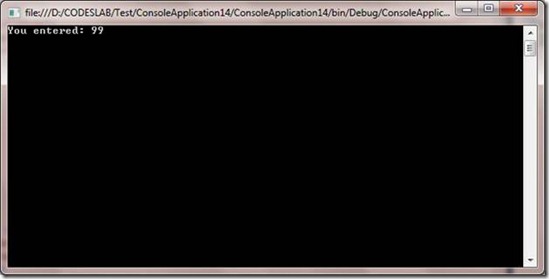

Now on running we will get below output



clip_image013



One behavior need to be noticed here is that sometime you may get time out exception after changing 127.0.0.1 to localhost also. In my further articles, I will drill down this unwanted behavior.
