Objective

This article will give step to step illustration of creating a simple media application for Windows 7 mobile.

Step 1

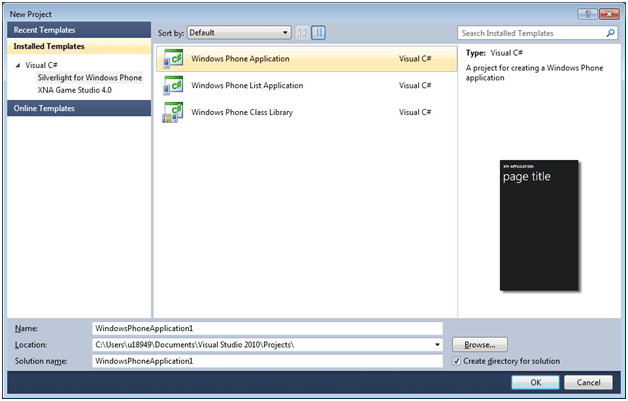

Create a new Windows Phone Application. From Silverlight for Windows Phone tab select Windows Phone Application project type.



Step 2

Design page.

  1. Divide content grid in two rows
  2. In first row put a media element control
  3. In second row put a button.

     MainPage.Xaml

<phoneNavigation:PhoneApplicationPage
x:Class=”PhotoApplication.MainPage”

xmlns=http://schemas.microsoft.com/winfx/2006/xaml/presentation

xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml

xmlns:phoneNavigation=”clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Navigation”

xmlns:d=http://schemas.microsoft.com/expression/blend/2008

xmlns:mc=http://schemas.openxmlformats.org/markup-compatibility/2006

mc:Ignorable=”d” d:DesignWidth=”480″ d:DesignHeight=”800″

FontFamily=”{StaticResource PhoneFontFamilyNormal}”

FontSize=”{StaticResource PhoneFontSizeNormal}”

Foreground=”{StaticResource PhoneForegroundBrush}”>

<Grid x:Name=”LayoutRoot” Background=”{StaticResource PhoneBackgroundBrush}”>

<Grid.RowDefinitions>

<RowDefinition Height=”Auto”/>

<RowDefinition Height=”*”/>

</Grid.RowDefinitions>

<!–TitleGrid is the name of the application and page title–>

<Grid x:Name=”TitleGrid” Grid.Row=”0″>

<TextBlock Text=”Windows 7 phone” x:Name=”textBlockPageTitle” Style=”{StaticResource PhoneTextPageTitle1Style}”/>

<TextBlock Text=”Media” x:Name=”textBlockListTitle” Style=”{StaticResource PhoneTextPageTitle2Style}”/>

</Grid>

<!–ContentGrid is empty. Place new content here–>

<Grid x:Name=”ContentGrid” Grid.Row=”1″>

<Grid.RowDefinitions>

<RowDefinition Height=”*” />

<RowDefinition Height=”Auto” />
 </Grid.RowDefinitions>
<Button x:Name=”btnPlay” Content=”Play” Height=”50″ Width=”100″ Grid.Row=”1″ />

<MediaElement x:Name=”mediactrl” HorizontalAlignment=”Stretch” VerticalAlignment=”Stretch” Stretch=”Uniform” Grid.Row=”0″/>

</Grid>

</Grid>
</phoneNavigation:PhoneApplicationPage>

Step 3

Right click on project and add an existing .wmv in project. I am adding a.wmv file here.

Step 4

Now in code behind just write below code to play the media file

    1 using System;

    2 using System.Collections.Generic;

    3 using System.Linq;

    4 using System.Net;

    5 using System.Windows;

    6 using System.Windows.Controls;

    7 using System.Windows.Documents;

    8 using System.Windows.Input;

    9 using System.Windows.Media;

   10 using System.Windows.Media.Animation;

   11 using System.Windows.Shapes;

   12 using Microsoft.Phone.Controls;

   13

   14 namespace PhotoApplication

   15 {

   16     public partial class MainPage : PhoneApplicationPage

   17     {

   18         public MainPage()

   19         {

   20             InitializeComponent();

   21

   22             SupportedOrientations = SupportedPageOrientation.Portrait | SupportedPageOrientation.Landscape;

   23             btnPlay.Click += new RoutedEventHandler(btnPlay_Click);

   24         }

   25

   26         void btnPlay_Click(object sender, RoutedEventArgs e)

   27         {

   28

   29             mediactrl.Source = new Uri(“a.wmv”, UriKind.Relative);

   30             mediactrl.Play();

   31         }

   32

   33

   34     }

   35 }

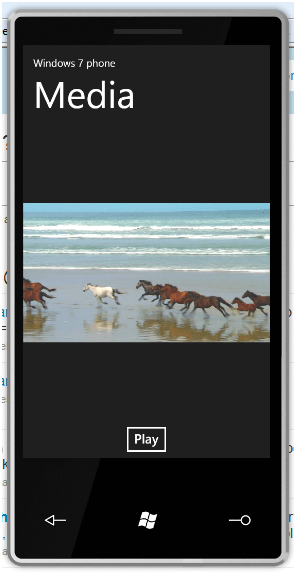

Press F5 to get output



I hope this article was useful. Thanks for reading. Happy coding.
