Objective

In this article, I will give explanation on XAttribute class. This class is used to construct Attributes in XML Elements.

What is Attribute in XML?

XML Attribute is a Name/Value pair associated with XML elements. XAttribute class represents XML Attributes.

XAttribute class

XAttribute Class is defined as below in namespace System.Xml.Linq. And it inherits the class XObject

using System;using System.Collections.Generic;using System.Xml;

namespace System.Xml.Linq

{

public class XAttribute : XObject
{
public XAttribute(XAttribute other);
public XAttribute(XName name, object value);
…….
}
}

5 Facts

  1. XElement contains a list of attribute for that element.
  2. Attributes must have unique name for that particular element.
  3. Attributes are not node they are Key/value pair associated with an element.
  4. Attributes are maintained in XML tree in order they are added to the element.
  5. When attributes are returned from element they are not sorted.

Constructor of XAttribute

If you see above definition of XAttribute class; there are two constructors. Usually we use the second constructor

public XAttribute(XName name, object value);

name: It is unique name of Attribute in XML Element. It is of type XName.

value: It is value of the attribute. It is of type object.

Example

In below example; I am constructing a XElment called xmltree. This root element is having many nested XElement,

  1. XElement
    Data1 is having one XAttribute. Name of the Attribute is “name” and value of attribute is “dj“.
  2. XElement
    Data2 is having two XAttribute. They are ID and DEPT with values U18949 and MIT respectively.
XElement xmltree = new XElement(“Root”,new XElement(“Data1”, newXAttribute(“name”, “Dj”), 1),
new XElement(“Data2”, new XAttribute(“ID”, “U18949”),
new XAttribute(“DEPT”,“MIT”),2),
new XElement(“Data3”, “3”),
new XElement(“Data4”, “4”)
);
Console.WriteLine(xmltree);

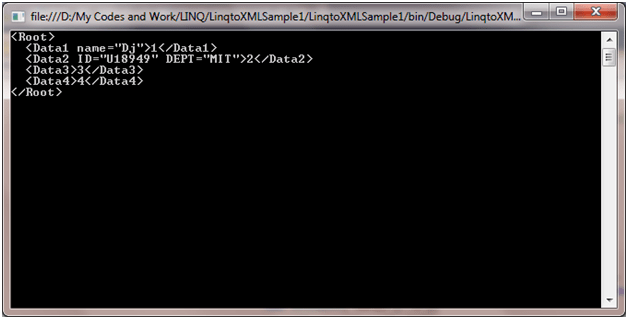

Output

Conclusion

In this article; I explained about XAttribute class. In next article, I will explain about XElement class. Thanks for reading.
