Objective

In this article , I will show how to work with Silver Light Navigation framework.

Create a Silver Light Application by selecting Silver Light application from project template. And follow below steps.

Step 1

Adding references

Add below references to Silver Light application.
System.Windows.Control

System.Windos.Control.Data

System.Windows.Control.Navigation

Step2

Adding namespaces

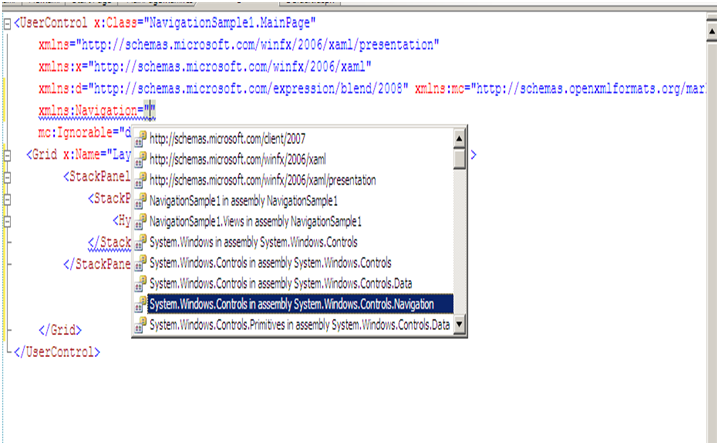

Open MainPage.Xaml and add the namespace. Give name of the namespace as Navigation and add System.Windows.Control.Navigation. See the image below.


Step 3

Creating Silver Light Page for navigation

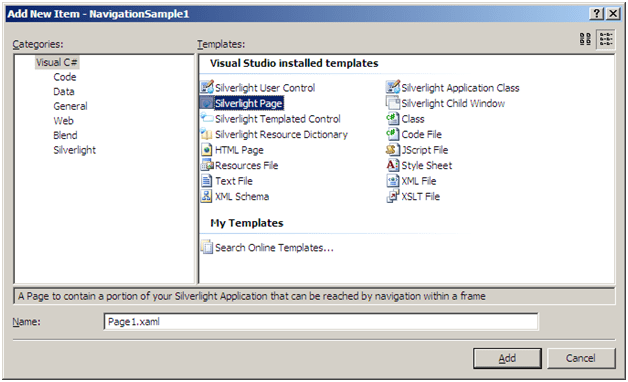

Now I am constructing the pages to navigate. Right click on silver light project and add a new folder. You can give any name to folder of your choice. I am giving name here View. Add two silver light pages inside this folder. To add right click on folder and add new Item then select Silver Light page. Page I am adding is

  1. Image.Xaml
  2. Me.Xaml


Me.Xaml

  1. Title of the page can be amending in Title tag. See the tag in bold.
  2. New added Silver Light page is navigation page.
  3. I have added a simple text block with some static text on the page for the demo purpose.



<navigation:Page x:Class=”NavigationSample1.Views.Me”
xmlns=http://schemas.microsoft.com/winfx/2006/xaml/presentation

xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml

xmlns:d=http://schemas.microsoft.com/expression/blend/2008

xmlns:mc=http://schemas.openxmlformats.org/markup-compatibility/2006

mc:Ignorable=”d”

xmlns:navigation=”clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Navigation”
d:DesignWidth=”640″ d:DesignHeight=”480″Title=”This Page is About Me”>
<Grid x:Name=”LayoutRoot”>
<TextBlock Text=”This Site is about me “ FontSize=”100″ VerticalAlignment=”Center” Foreground=”Red” />
</Grid>
</navigation:Page>

 Image.Xaml

  1. Title of the page can be amending in Title tag. See the tag in bold.
  2. New added Silver Light page is navigation page.
  3. One image is added for the demo purpose.
<navigation:Page x:Class=”NavigationSample1.Views.Image”
xmlns=http://schemas.microsoft.com/winfx/2006/xaml/presentation

xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml

mlns:d=http://schemas.microsoft.com/expression/blend/2008
xmlns:mc=http://schemas.openxmlformats.org/markup-compatibility/2006

mc:Ignorable=”d”
xmlns:navigation=”clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Navigation”
d:DesignWidth=”640″ d:DesignHeight=”480″Title=”My Image”>
<Grid x:Name=”LayoutRoot”>
<Image Height=”auto” Width=”auto” Source=”a.jpg” />
</Grid></navigation:Page>

Step 4

Designing for navigation

Now it is time to design main page for navigation.

  1. I am adding two HyperLinkButtons. On clicking of buttons, we will navigate to other pages.
  2. There is TAG property of hyperlink, which says where hyperlink will navigate. Views are folder we added and Me.Xaml is silver light page to navigate.

    Tag=”/Views/Me.Xaml”

  3. Add either a frame or page to where navigated page will be open. There are two options either Page or Frame. Navigation is the name of the namespace we added.
  4. Navigation framework can have many properties. I am setting few of them. See below.

    <Navigation:Frame x:Name=”MyFrame” HorizontalAlignment=”Stretch” VerticalAlignment=”Stretch” Margin=”20″ />

MainPage.Xaml

<UserControl x:Class=”NavigationSample1.MainPage”
xmlns=http://schemas.microsoft.com/winfx/2006/xaml/presentation

xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml

xmlns:d=”http://schemas.microsoft.com/expression/blend/2008&#8243; xmlns:mc=http://schemas.openxmlformats.org/markup-compatibility/2006

xmlns:Navigation=”clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Navigation”
mc:Ignorable=”d” d:DesignWidth=”640″ d:DesignHeight=”480″>
<Grid x:Name=”LayoutRoot” Width=”auto” Height=”auto” Background=”Wheat” >

<StackPanel Orientation=”Horizontal” VerticalAlignment=”Top” >

<StackPanel Orientation=”Vertical” Width=” 250″>

<HyperlinkButton x:Name=”btnAbt” Tag=”/Views/Me.Xaml” Content=”About Me” FontSize=”24″ />

<HyperlinkButton x:Name=”btnImg” Tag=”/Views/Image.Xaml” Content=”My Images” FontSize=”24″ />
</StackPanel>
<Navigation:Frame x:Name=”MyFrame” HorizontalAlignment=”Stretch” VerticalAlignment=”Stretch” Margin=”20″ />

</StackPanel>

</Grid>
</UserControl>


Step 5

Writing code behind to navigate

  1. Add click event to hyperlinkbuttons.

btnAbt.Click += new RoutedEventHandler(NavigateToLink)

btnImg.Click +=new RoutedEventHandler(NavigateToLink);

  1. Handle the click event

void NavigateToLink(object sender, RoutedEventArgs e)

{
HyperlinkButton buttonToNavigate = sender as
HyperlinkButton;

string urlToNavigate = buttonToNavigate.Tag.ToString();
this.MyFrame.Navigate(new Uri(urlToNavigate, UriKind.Relative));
}

MainPage.Xaml.cs

namespace NavigationSample1

{
public partial class MainPage : UserControl
{

public MainPage(){

InitializeComponent();btnAbt.Click += new RoutedEventHandler(NavigateToLink);

btnImg.Click +=new RoutedEventHandler(NavigateToLink);

}

void NavigateToLink(object sender, RoutedEventArgs e){
HyperlinkButton buttonToNavigate = sender as HyperlinkButton;
string urlToNavigate = buttonToNavigate.Tag.ToString();
this.MyFrame.Navigate(new
Uri(urlToNavigate, UriKind.Relative));

} }}


Step 6

Run the application.

You can see while clicking on the hyperlinks, we are able to navigate in the frame. So, we are able to navigate through pages using navigation framework.

Conclusion

We saw how to work with navigation framework in this article. Thanks for reading
