In WCF we use the DataContract to serialize and deserialize the custom data. Sometime you may come across a scenario do some work before or after the data gets serialized or deserialized. These are following four events provided on the DataContract.

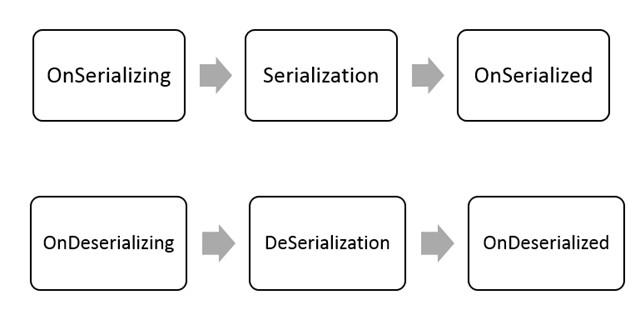

You are free to give any method name provided method should return void and takes StreamingContext as input parameter. In a block diagram we can show events sequence as follows:


You can create these events inside the class decorated with DataContract. Now let us see some real time examples. Let us say you have a DataContract as follows:




[DataContract]
    public class Product
    {
        [DataMember]
        public string Name { get; set; }
        [DataMember]
        public double Price { get; set; }
     }
}


We have a very simple ServiceContract defined as follows:




[ServiceContract]
    public interface IService1
    {

        [OperationContract]
        Product GetProduct(Product p);

    }


Service is implementedĀ as follow which is basically echoing the data provided by the client.




public class Service1 : IService1
    {


        public Product GetProduct(Product p)
        {
            Product p1 = new Product { Name = p.Name, Price = p.Price };
            return p1;
        }
    }


So far great now let is consume the service and examine the sequence of the serialization and deserialization events. Service is consumed as follows




Service1Client proxy = new Service1Client();
            Product p = new Product { Price = 300, Name = "Pen" };
            var result = proxy.GetProduct(p);
            Console.WriteLine(result.Name + result.Price);
            Console.ReadKey(true);

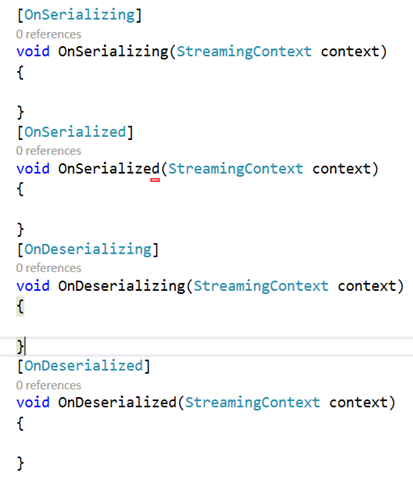

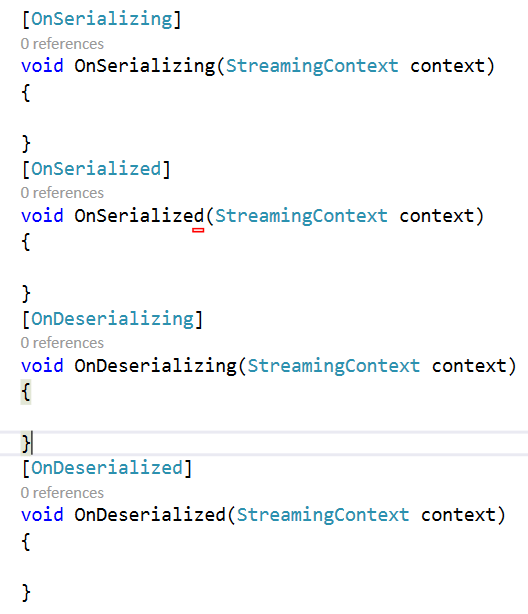

Now let us go ahead and modify the data contract class by adding the events. Modified class will look like as follows:




using System.Runtime.Serialization;

namespace DataContractEventsDemo
{
    [DataContract]
    public class Product
    {
        [DataMember]
        public string Name { get; set; }
        [DataMember]
        public double Price { get; set; }

        [OnSerializing]
        void OnSerializing(StreamingContext context)
        {

        }
        [OnSerialized]
        void OnSerialized(StreamingContext context)
        {

        }
        [OnDeserializing]
        void OnDeserializing(StreamingContext context)
        {

        }
        [OnDeserialized]
        void OnDeserialized(StreamingContext context)
        {

        }
    }
}

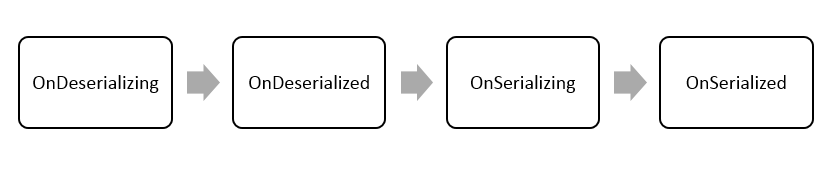

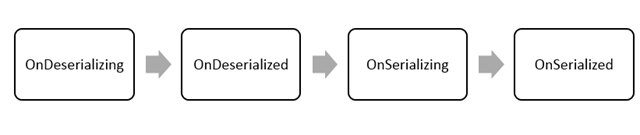

To find out sequence in which events get executed put a break point on the events. You will find events get executed in following sequence


Now consider a real time scenario that if client is not passing price of the product then service should provide a default price value. You can do that in OnDeserialized event as follows:



[OnDeserialized]
        void OnDeserialized(StreamingContext context)
        {
            if(Price==0)
            {
                Price = 99;
            }

        }

Now if modify the client and not provide price as shown below




  static void Main(string[] args)
        {

            Service1Client proxy = new Service1Client();
            Product p = new Product { Name = "Pen" };
            var result = proxy.GetProduct(p);
            Console.WriteLine(result.Name + result.Price);
            Console.ReadKey(true);
        }

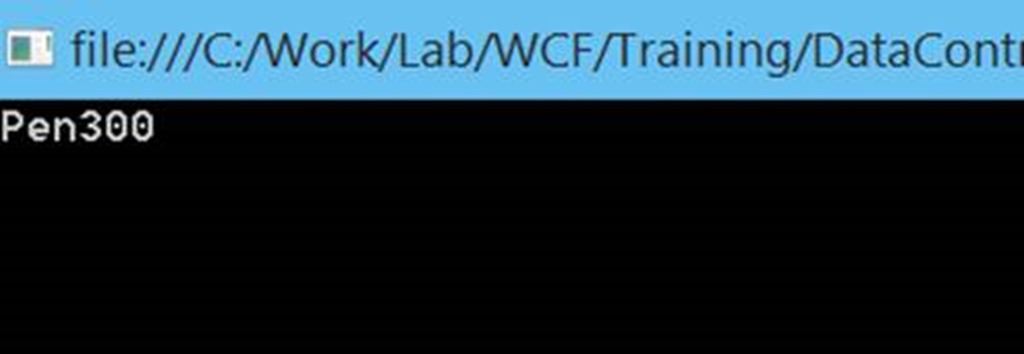

You will get output with default price as follows

clip_image002These events are useful to provide default values, closing connections to data base etc.Hope you find the post useful. Happy Coding.
