This post and helper class is based on work of Jamie Thomson . I thank him lot for that.

Why to use Metro Application Isolated Storage Helper?

This helper class helps you to perform Read,Write and Delete of structured data in Isolated storage folders.

How to use this?

Download Metro Application Isolated Storage Helper from here

• Download XAML Metro Application Isolated Storage Helper from here
• Add reference of XAMLMetroAppIsolatedStorageHelper.dll
• Add Namespace using XAMLMetroAppIsolatedStorageHelper;

You have a class Student

public class Student
    {
        public string Name { get; set; }
        public int RollNumber { get; set; }
    }

You want to save object of Student then you can save it in Local Folder of isolated storage as below

Student objStudent = new Student { Name = "DJ ", RollNumber = 1 };
            var objectStorageHelper = new StorageHelper<Student>(StorageType.Local);
            objectStorageHelper.SaveASync(objStudent,"abc");

And you can read back Student from isolated storage as below

public async void ReadData()
        {
            var objectStorageHelper = new StorageHelper<Student>(StorageType.Local);
            Student objStudent = await objectStorageHelper.LoadASync("abc");

        }

Abc is name of the file. If you want to store List<Student> then you can do that as following,

List<Student> lstStudent = new List<Student>()
                                        {new Student { Name = "DJ ", RollNumber = 1 },
                                         new Student { Name = "debugmode", RollNumber = 2 }
                                        };

            var objectStorageHelper = new StorageHelper<List<Student>>(StorageType.Local);
            objectStorageHelper.SaveASync(lstStudent, "abc");

You can read List<Student> from local folder of isolated storage as following

public async void ReadData()
        {
            var objectStorageHelper = new StorageHelper<List<Student>>(StorageType.Local);
            List<Student> lstStudent = await objectStorageHelper.LoadASync("abc");
            foreach (var r in lstStudent)
            {
                string n = r.Name;
            }
        }

Background

I was working with storing and retrieving structured data in Isolated Storage. While Binging I came across nicely written Generic Object Storage Helper for WinRT . This is written by Jamie Thomson . When I tried using this utility I came across an exception. I tried to store object of Student as following.

private void btnSaveData_Click_1(object sender, RoutedEventArgs e)
        {
            Student objStudent = new Student { Name = "Hary ", RollNumber = 1 };
            var objectStorageHelper = new ObjectStorageHelper<Student>(StorageType.Local);
            objectStorageHelper.SaveASync(objStudent);
        }

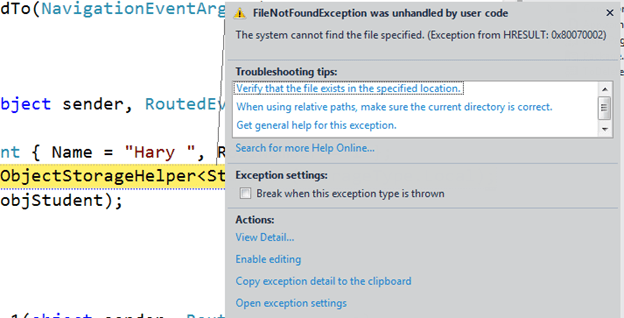

But while running the program I came across exception as below,

After inspecting I found that library is written in Developer Preview and few API has been changed in Consumer Preview. Thankfully Jamie Thomson has put the source code on the CodePlex also. A big thank to him for the same. Rather than adding DLL and working with API, I copied and pasted code in my program and started to debug that.

First changes in API from DP to CP was that there were no TryMoveToRecycleBin in StorageDeleteOption enum

Now StorageDeleteOption enum contains only two values as below,

So I replaced above line of code as below,

The Second changes from DP to CP I found was removal of OpenWrite and OpenRead method from IRandomAcccessStream interface

Where readStream is defined as below,

And OpenWrite has been replaced with AsStreamForWrite

I have modified code to explicitly take filename as well. After these changes have been done Code was ready to be used in Consumer Preview. Updated helper class code is as following,

     public enum StorageType
    {
        Roaming, Local, Temporary
    }

    public class ObjectStorageHelper<T>
    {
        private ApplicationData appData = Windows.Storage.ApplicationData.Current;
        private XmlSerializer serializer;
        private StorageType storageType;


        public ObjectStorageHelper(StorageType StorageType)
        {
            serializer = new XmlSerializer(typeof(T));
            storageType = StorageType;
        }

        public async void DeleteASync(string FileName)
        {
            FileName = FileName + ".xml";
            try
            {
                StorageFolder folder = GetFolder(storageType);

                var file = await GetFileIfExistsAsync(folder, FileName);
                if (file != null)
                {
                    await file.DeleteAsync(StorageDeleteOption.PermanentDelete);
                }
            }
            catch (Exception)
            {
                throw;
            }
        }

        public async void SaveASync(T Obj,string FileName)
        {

            FileName = FileName + ".xml";
            try
            {
                if (Obj != null)
                {
                    StorageFile file = null;
                    StorageFolder folder = GetFolder(storageType);
                    file = await folder.CreateFileAsync(FileName, CreationCollisionOption.ReplaceExisting);

                    IRandomAccessStream writeStream = await file.OpenAsync(FileAccessMode.ReadWrite);
                    Stream outStream = Task.Run(() => writeStream.AsStreamForWrite()).Result;
                    serializer.Serialize(outStream, Obj);
                }
            }
            catch (Exception)
            {
                throw;
            }
        }
        public async Task<T> LoadASync(string FileName)
        {
            FileName = FileName + ".xml";
            try
            {
                StorageFile file = null;
                StorageFolder folder = GetFolder(storageType);
                file = await folder.GetFileAsync(FileName);
                IRandomAccessStream readStream = await file.OpenAsync(FileAccessMode.Read);
                Stream inStream = Task.Run(() => readStream.AsStreamForRead()).Result;
                return (T)serializer.Deserialize(inStream);
            }
            catch (FileNotFoundException)
            {
                //file not existing is perfectly valid so simply return the default
                return default(T);
                //throw;
            }
            catch (Exception)
                 {
                //Unable to load contents of file
                throw;
            }
        }

        private StorageFolder GetFolder(StorageType storageType)
        {
            StorageFolder folder;
            switch (storageType)
            {
                case StorageType.Roaming:
                    folder = appData.RoamingFolder;
                    break;
                case StorageType.Local:
                    folder = appData.LocalFolder;
                    break;
                case StorageType.Temporary:
                    folder = appData.TemporaryFolder;
                    break;
                default:
                    throw new Exception(String.Format("Unknown StorageType: {0}", storageType));
            }
            return folder;
        }

        private async Task<StorageFile> GetFileIfExistsAsync(StorageFolder folder, string fileName)
        {
            try
            {
                return await folder.GetFileAsync(fileName);

            }
            catch
            {
                return null;
            }
 }
    }

In this way you can work with structured data in XAML based Metro Application for Windows 8. I hope this post is useful. Thanks for reading.
