How to launch Call Task from Secondary Tile in Windows Phone 7

Recently I got a mail from one of the reader. She asked; How could be launch Call Task from Secondary Tile? In this post I am going to show the way to do that. Before you go ahead with this post, I strongly recommend reading below three posts for more on Live Tiles and Call Task.

Video on How to work with Live Tiles in Windows Phone 7

Live Tiles in Windows Phone 7.5 or Mango phone

Code to make call in Windows Phone 7

Delete Secondary Tiles in Windows Phone 7.5 or Mango Phone

Idea of launching Call Task from Secondary Tiles is very simple.

  1. On clicking of Secondary Tile user will get navigated to a blank page. Let us call that page as Page1.XAML
  2. On NavigatedTo method of the Page1.Xaml, we will instantiate Call Task and show call panel to user.

Let us create Secondary Tile on MainPage.Xaml. I have put a button on MainPage and on click event of the button Secondary Tile will get created.

private void btnCreateSecondaryTiles_Click(object sender, RoutedEventArgs e)

var newTile = new StandardTileData()
Title = "Blogs Update",
BackgroundImage = new Uri("background.png", UriKind.Relative),
Count = 42,
var uri = "/Page1.xaml?state=Live Tile";
ShellTile.Create(new Uri(uri, UriKind.Relative), newTile);


If you notice in above code, I have set navigation to Page1.Xaml. Now on onNavigatedTo() method we need to write code to launch Call Task.

protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
PhoneCallTask callTask = new PhoneCallTask();
callTask.PhoneNumber = "999999";
callTask.DisplayName = "debugMode";

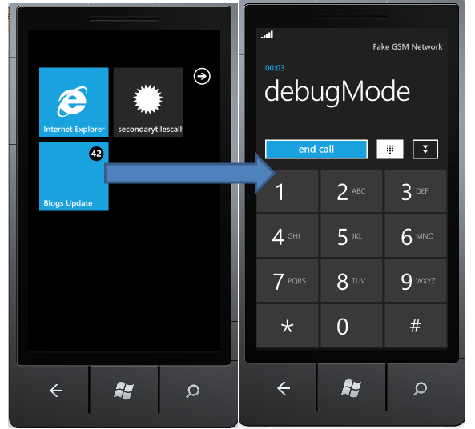

On running you should be getting below output


I hope this post was useful. Thanks for reading.

Published by

Dhananjay Kumar

Dhananjay Kumar is Developer Evangelist for Infragistics. He is a 8 times Microsoft MVP and well respected Developer Advocate in India.He is the author of 900+ Blog Posts, and can often be found speaking around India at conferences and hosting free workshops for programmers across the country. So far, he has hosted 60 free workshops on various topics like JavaScript, Angular, WCF, ASP.NET MVC, C#, Azure etc. Follow him on twitter @debug_mode for all the updates about his blog posts and workshops. You can send him email at debugmode [at] outlook [dot] com

4 thoughts on “How to launch Call Task from Secondary Tile in Windows Phone 7”

  1. hello.

    it is valid that after launching the PhoneTask, the app navigates to the Home Screen so that when the user is done with the PhoneTask, he/she lands in the Home Screen instead of in a page of the app.
    (something like using the secondary tile as a direct access to the PhoneTask).


    p.s.: sorry if my english is not very good.
