Viewing Flickr Images on Windows 7.1 Phone or Mango Phone

In this post I will show you how you can create a Photo Viewer from images of the Flickr Service.

Flickr Service

Flickr expose a REST based feed to access images. You can find information about Flickr public feed at below link.

http://www.flickr.com/services/feeds/docs/photos_public/

Public images feed can be find at

http://api.flickr.com/services/feeds/photos_public.gne

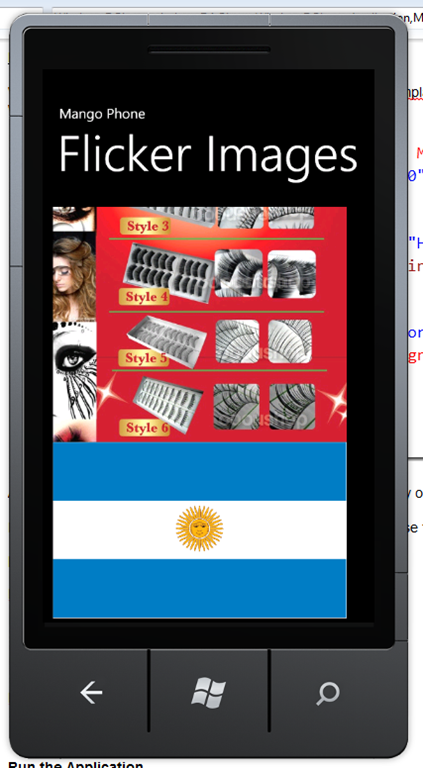

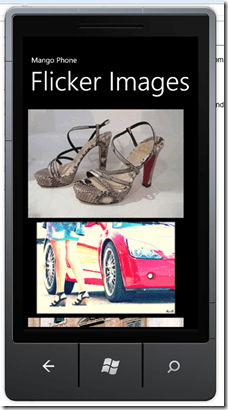

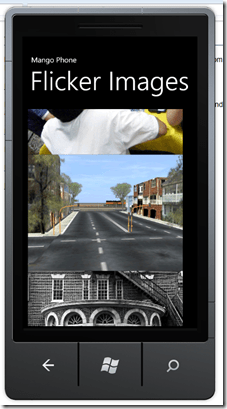

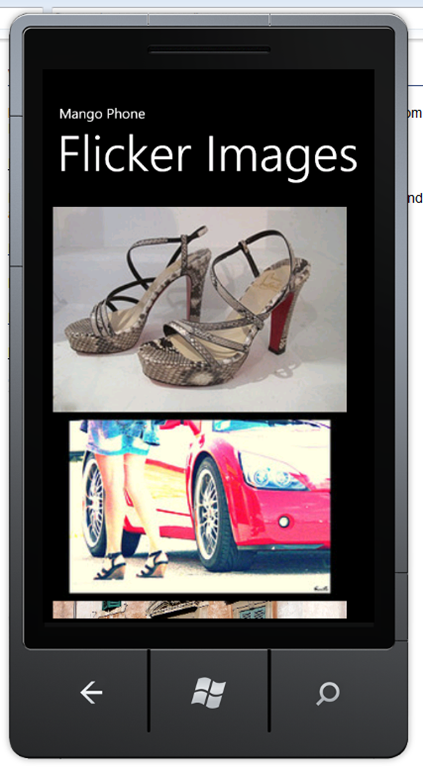

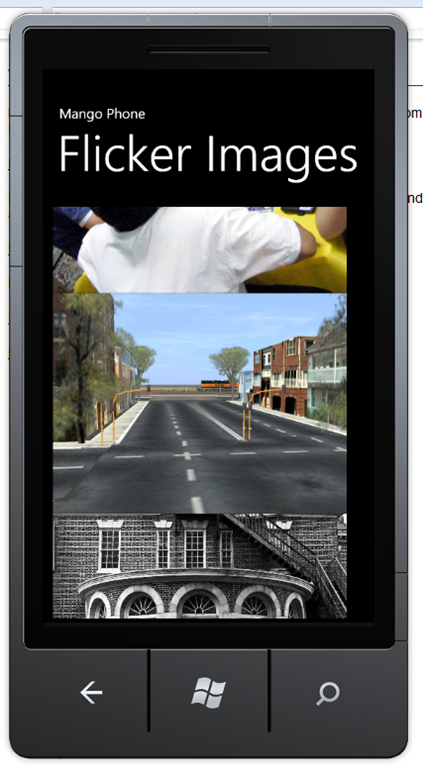

Expected Output


Approach

  1. Call Flickr Service
  2. Parse XML feed
  3. Bind it to List Box.

Create Windows Phone 7.1 Application

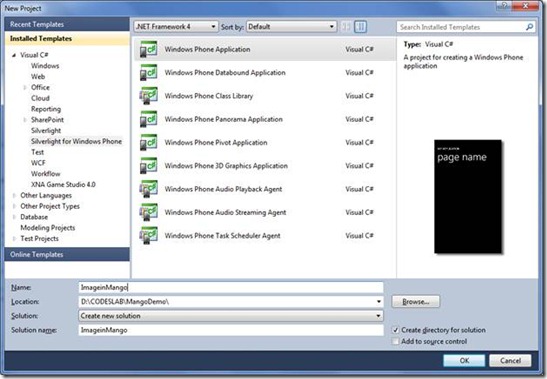

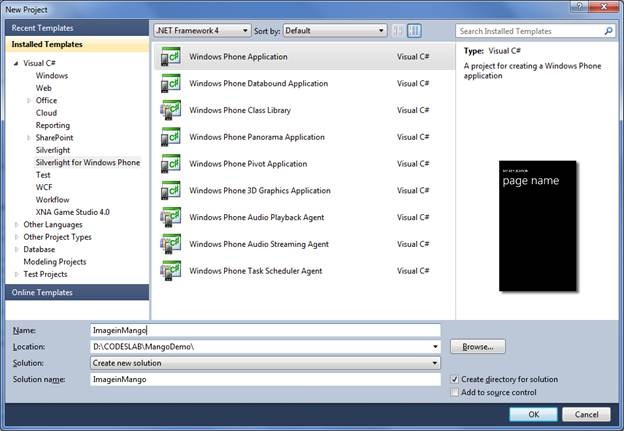

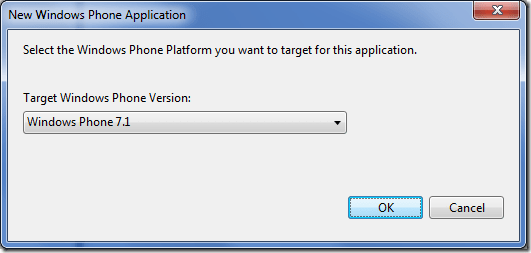

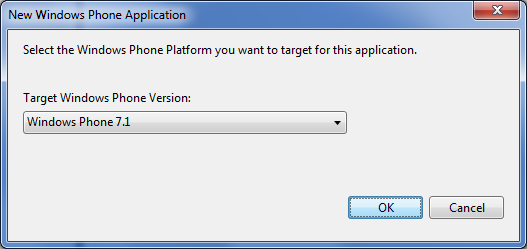

Create Windows 7 Phone Application and select Windows Phone 7.1 as target Windows Phone version.

clip_image002

clip_image003

Create Photo class

To bind images to the ListBox, let us create Photo class. Right click and add a class called Photo in the project. When we parse Flickr Image feeds, we will bind public Image URL here

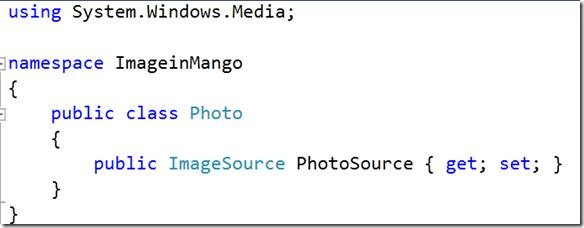

Photo.cs

clip_image005

Parsing Image Feed of Flickr Service

When you open public feed URL of Flicker in browser; you can view the feeds in browser itself.

clip_image007

We are going to give value of link element from the feed in Image as source value.

We will have to make asynchronous calls as below,

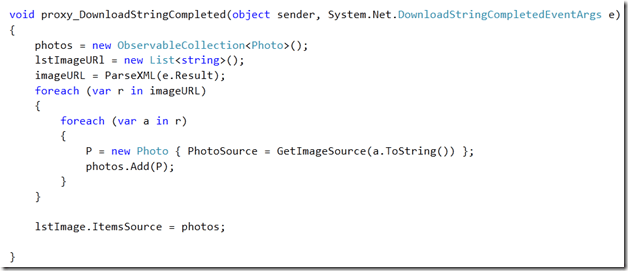

Then in DonwnloadStringCompleted event, we will have to perform below tasks,

  1. Create a Observable collection of Photos
  2. Parse the Feed
  3. Iterate through all the public image url in feed and add to collection.

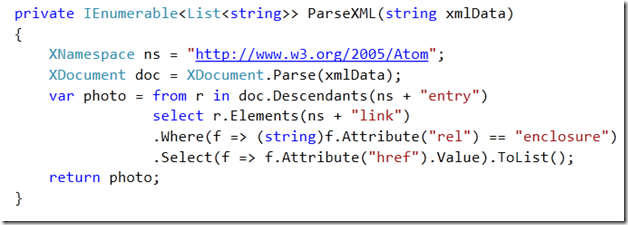

Parsing of feeds can be done as below,

  1. We are parsing Link URL.
  2. Fetching the value of href attribute in Link URL.
  3. There are two link elements and we are fetching value of link element having rel attribute value as enclosure


Design the Page

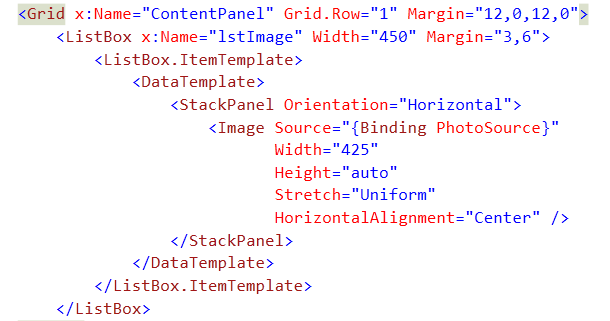

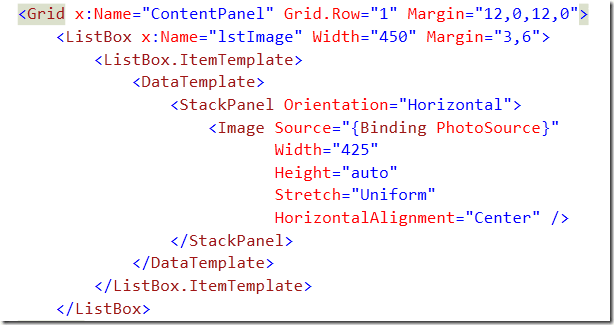

We are going to put a ListBox in content grid and inside ItemTemplate of ListBox , we will put Image control.

clip_image001

As source of the Image you need to bind PhotoSource property of Photo class.

For Reference full source codes are given below. Feel free to use for your purpose  Smile

MainPage.xaml


<phone:PhoneApplicationPage
    x:Class="FlickerImageFeed.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Mango Phone" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Flicker Images" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <ListBox x:Name="lstImage" Width="450" Margin="3,6">
                <ListBox.ItemTemplate>
                    <DataTemplate>
                        <StackPanel Orientation="Horizontal">
                            <Image Source="{Binding PhotoSource}"
                                   Width="425"
                                   Height="auto"
                                   Stretch="Uniform"
                                   HorizontalAlignment="Center" />
                        </StackPanel>
                    </DataTemplate>
                </ListBox.ItemTemplate>
            </ListBox>
        </Grid>
    </Grid>

</phone:PhoneApplicationPage>

MainPage.xaml.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows.Media;
using Microsoft.Phone.Controls;
using System.Collections.ObjectModel;
using System.Windows.Media.Imaging;
using System.Xml.Linq;

namespace FlickerImageFeed
{
    public partial class MainPage : PhoneApplicationPage
    {

        IEnumerable<List<string>> imageURL;
        List<string> lstImageURl;
        Photo P;
        ObservableCollection<Photo> photos;
        public MainPage()
        {
            InitializeComponent();
            GetAllPhotos();
        }

        private ImageSource GetImageSource(string fileName)
        {
            return new BitmapImage(new Uri(fileName, UriKind.Absolute));
        }
        private void  GetAllPhotos()
        {

            WebClient proxy = new WebClient();
            proxy.DownloadStringAsync(new Uri("http://api.flickr.com/services/feeds/photos_public.gne"));
            proxy.DownloadStringCompleted += new System.Net.DownloadStringCompletedEventHandler(proxy_DownloadStringCompleted);

        }

        void proxy_DownloadStringCompleted(object sender, System.Net.DownloadStringCompletedEventArgs e)
        {
            photos = new ObservableCollection<Photo>();
            lstImageURl = new List<string>();
            imageURL = ParseXML(e.Result);
            foreach (var r in imageURL)
            {
                foreach (var a in r)
                {
                    P = new Photo { PhotoSource = GetImageSource(a.ToString()) };
                    photos.Add(P);
                }
            }

            lstImage.ItemsSource = photos;

        }
        private IEnumerable<List<string>> ParseXML(string xmlData)
        {
            XNamespace ns = "http://www.w3.org/2005/Atom";
            XDocument doc = XDocument.Parse(xmlData);
            var photo = from r in doc.Descendants(ns + "entry")
                        select r.Elements(ns + "link")
                        .Where(f => (string)f.Attribute("rel") == "enclosure")
                        .Select(f => f.Attribute("href").Value).ToList();
            return photo;
        }
    }
}

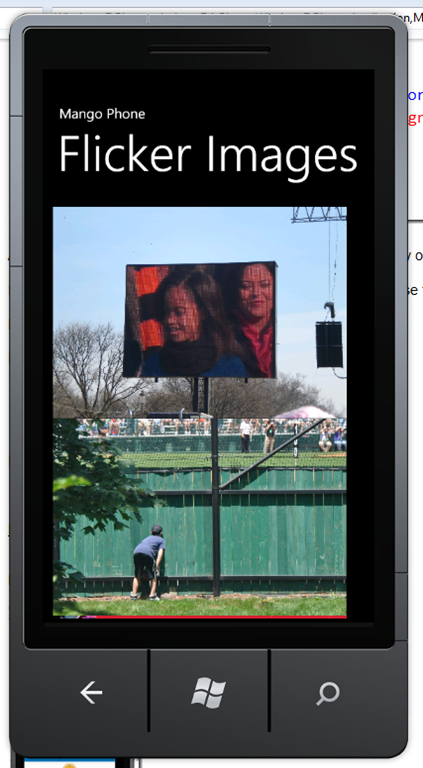

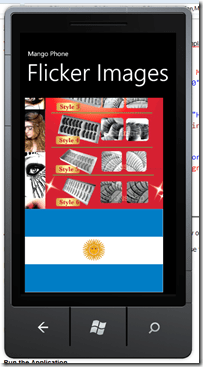

Run the Application

Press F5 to run Photo viewer from images of Flicker service Smile


I hope this post was useful. Thanks for reading  Smile
