AutoCompleteBox in Silverlight 4.0

Target Audience: Beginners

AutoCompleteBox control is part of Silverlight 4.0 SDK. It allows us to have a Google style text box.

It works like below,

clip_image001[4]

AutoCompleteBox will look for suggestion in IEnumerable list.

Create a DataSource to find the suggestion

Very first let us create a Country Class. This class will serve as Entity class.

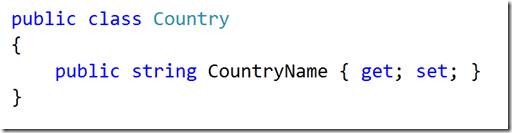

clip_image003

Create a function and this function will return list of country,

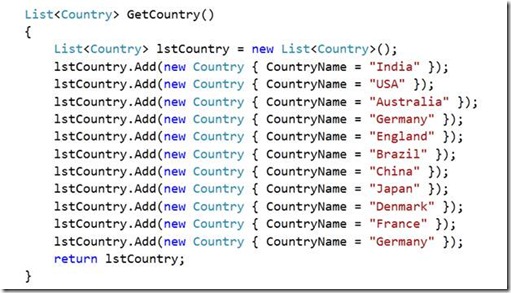

clip_image005

We will set above function as DataContext() of AutoCompleteBox.

Drag and Drop AutoCompleteBox on XAML

1. From the tool box select AutoCompleteBox and drop on the XAML page

clip_image006[4]

2. Set the Binding, ValueMemberPath and FilterMode.

clip_image008

3. Set the DataTemplate and bind the TextBlock where user will type the text.

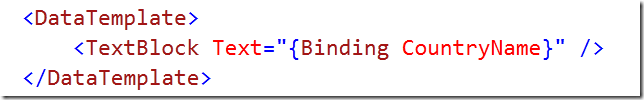

clip_image009

Set the DataContext

We need to set the DataContext of AutoCompleteBox in code behind

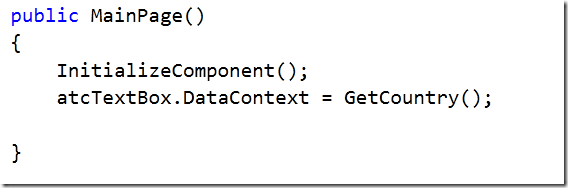

clip_image010

For reference,

MainPage.Xaml

<Grid x:Name="LayoutRoot" Background="White">
 <sdk:AutoCompleteBox x:Name="atcTextBox" ItemsSource="{Binding}"
 ValueMemberPath="CountryName"
 FilterMode="Contains"
 IsTextCompletionEnabled="True"
 Height="30" Margin="62,22,54,248">
 <sdk:AutoCompleteBox.ItemTemplate>
 <DataTemplate>
 <TextBlock Text="{Binding CountryName}" />
 </DataTemplate>
 </sdk:AutoCompleteBox.ItemTemplate>

 </sdk:AutoCompleteBox>

</Grid>

MainPage.Xaml.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;

namespace SilverlightApplication4
{
 public partial class MainPage : UserControl
 {
 public MainPage()
 {
 InitializeComponent();
 atcTextBox.DataContext = GetCountry();

}

List<Country> GetCountry()
 {
 List<Country> lstCountry = new List<Country>();
 lstCountry.Add(new Country { CountryName = "India" });
 lstCountry.Add(new Country { CountryName = "USA" });
 lstCountry.Add(new Country { CountryName = "Australia" });
 lstCountry.Add(new Country { CountryName = "Germany" });
 lstCountry.Add(new Country { CountryName = "England" });
 lstCountry.Add(new Country { CountryName = "Brazil" });
 lstCountry.Add(new Country { CountryName = "China" });
 lstCountry.Add(new Country { CountryName = "Japan" });
 lstCountry.Add(new Country { CountryName = "Denmark" });
 lstCountry.Add(new Country { CountryName = "France" });
 lstCountry.Add(new Country { CountryName = "Germany" });
 return lstCountry;
 }
 }
}

We can set the source from WCF service, Database, cloud anywhere.
