In this article we will walkthrough on creating a WCF Service by choosing WCF Service Library project template.

Step 1

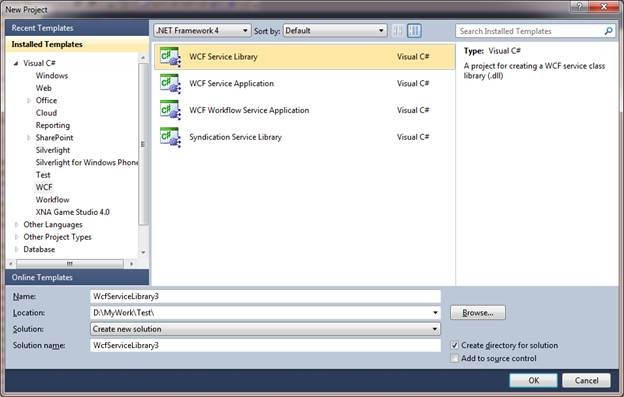

Create a WCF Service Library project.

clip_image002

Delete all the default codes created by WCF.

Step 2

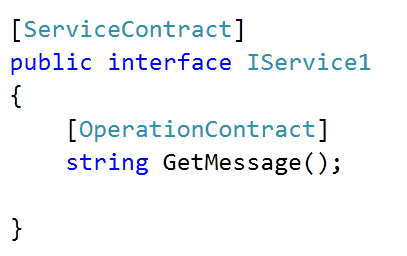

Modify Operation Contract as below,

clip_image003

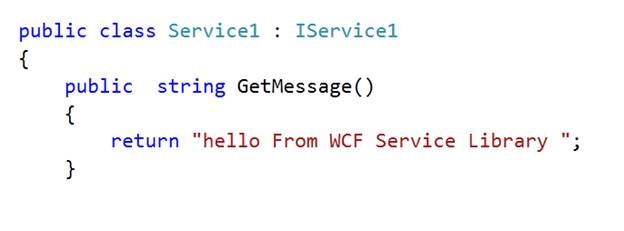

Implement the service as below

clip_image005

Step 3

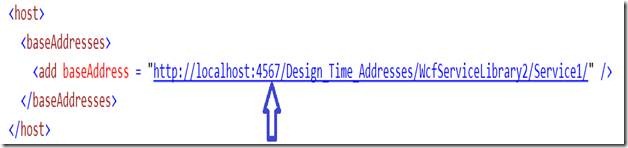

Leave App.config file as it is with EndPoint with wsHttpBinding .

If needed, modify default port number to some other port to avoid getting run time exception while testing the service in WCF Service client.

clip_image007

Step 4

Now run the WCF service library. Just press F5. In WCF Test client service will be running.

clip_image009

Now we can see our service is tested and running in WCF Test client.

Step 5

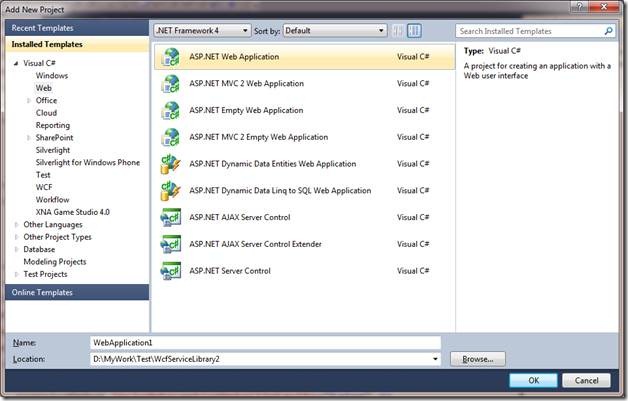

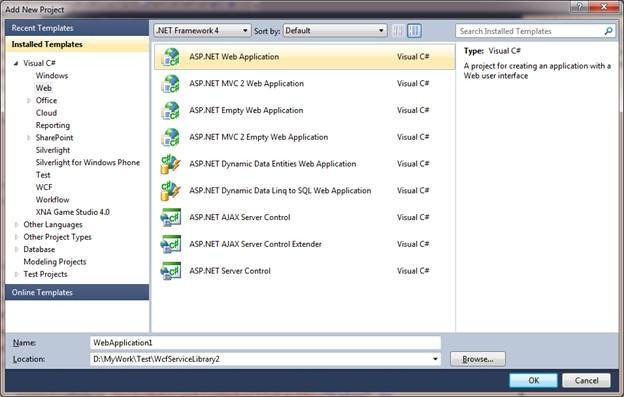

Add a Web Application to the same solution. We will be hosting the WCF Service library to this web application.

clip_image011

Make web application project as startup project. To do so right click and make the project as start up project.

Step 6

Right click on the web application project and add reference of WCF Service library project , we created in step 1.

clip_image012

Step 7

Now right click on the Web Application project and from general tab add a text file. Give any name to the text file but make sure extension is .svc.

clip_image014

Add the below code in newly added .svc file.

clip_image016

In above code WcfServiceLibrary2 is the namespace of the service we created in step 1.

Step 8

Now we need to modify the Web.Config file of web application project and add the System.serviceModel .

clip_image017

We need to enable the Metadata exchange end point. So add below markup

clip_image019

Now add the service behavior to enable meta data exchange endpoint

clip_image021

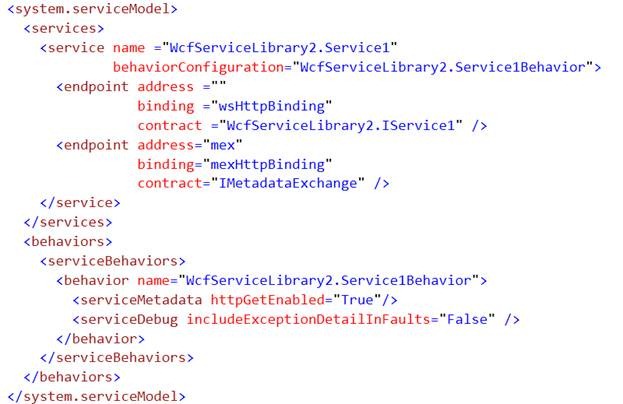

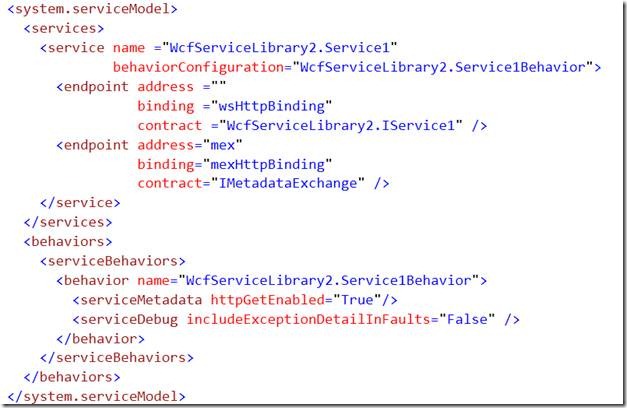

And now add the service configuration behavior to the service. After adding that System.serviceModel will look like below

clip_image023

For reference config file will look like below,

Web.Config


<?xml version="1.0"?>

<!--
 For more information on how to configure your ASP.NET application, please visit
 <a href="http://go.microsoft.com/fwlink/?LinkId=169433">http://go.microsoft.com/fwlink/?LinkId=169433</a>
 -->

<configuration>
 <connectionStrings>
 <add name="ApplicationServices"
 connectionString="data source=.\SQLEXPRESS;Integrated Security=SSPI;AttachDBFilename=|DataDirectory|\aspnetdb.mdf;User Instance=true"
 providerName="System.Data.SqlClient" />
 </connectionStrings>

<system.web>
 <compilation debug="true" targetFramework="4.0" />

<authentication mode="Forms">
 <forms loginUrl="~/Account/Login.aspx" timeout="2880" />
 </authentication>

<membership>
 <providers>
 <clear/>
 <add name="AspNetSqlMembershipProvider" type="System.Web.Security.SqlMembershipProvider" connectionStringName="ApplicationServices"
 enablePasswordRetrieval="false" enablePasswordReset="true" requiresQuestionAndAnswer="false" requiresUniqueEmail="false"
 maxInvalidPasswordAttempts="5" minRequiredPasswordLength="6" minRequiredNonalphanumericCharacters="0" passwordAttemptWindow="10"
 applicationName="/" />
 </providers>
 </membership>

<profile>
 <providers>
 <clear/>
 <add name="AspNetSqlProfileProvider" type="System.Web.Profile.SqlProfileProvider" connectionStringName="ApplicationServices" applicationName="/"/>
 </providers>
 </profile>

<roleManager enabled="false">
 <providers>
 <clear/>
 <add name="AspNetSqlRoleProvider" type="System.Web.Security.SqlRoleProvider" connectionStringName="ApplicationServices" applicationName="/" />
 <add name="AspNetWindowsTokenRoleProvider" type="System.Web.Security.WindowsTokenRoleProvider" applicationName="/" />
 </providers>
 </roleManager>

</system.web>
 <system.serviceModel>
 <services>
 <service name ="WcfServiceLibrary2.Service1"
 behaviorConfiguration="WcfServiceLibrary2.Service1Behavior">
 <endpoint address =""
 binding ="wsHttpBinding"
 contract ="WcfServiceLibrary2.IService1" />
 <endpoint address="mex"
 binding="mexHttpBinding"
 contract="IMetadataExchange" />
 </service>
 </services>
 <behaviors>
 <serviceBehaviors>
 <behavior name="WcfServiceLibrary2.Service1Behavior">
 <serviceMetadata httpGetEnabled="True"/>
 <serviceDebug includeExceptionDetailInFaults="False" />
 </behavior>
 </serviceBehaviors>
 </behaviors>
 </system.serviceModel>
 <system.webServer>
 <modules runAllManagedModulesForAllRequests="true"/>
 </system.webServer>
</configuration>



Press F5 to run the service

clip_image025

Step 9

Now we will create a client to call the service. Right click on the same solution and add console project. Make console application as start project.

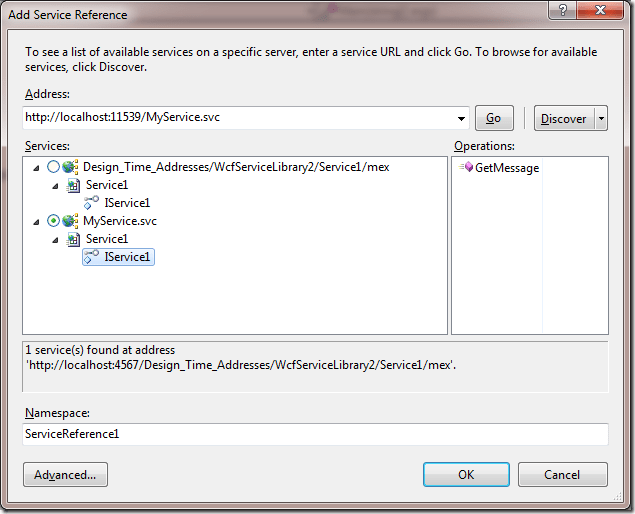

Add the service reference

clip_image026

Now call the service as below,

Programs.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using ConsoleApplication1.ServiceReference1;

namespace ConsoleApplication1
{
 class Program
 {
 static void Main(string[] args)
 {

Service1Client proxy = new Service1Client();
 var r = proxy.GetMessage();
 Console.WriteLine(r);
 Console.ReadKey(true);
 }
 }
}

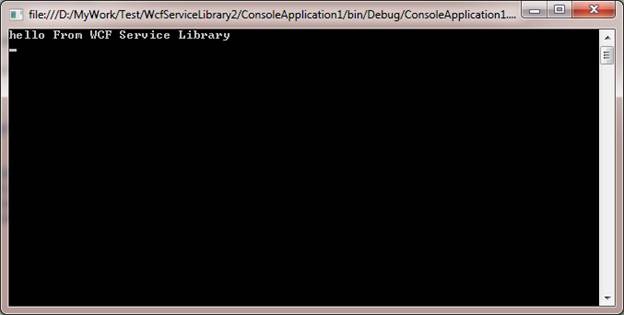

On running we will get the expected output as below,

clip_image028
