For a normal developer like me, had a great challenge working with WCF 3.x was configuration of End Points in config file. Developer had to add endpoints to setup a WCF service. In WCF 4, Defualt End Point is associated with the service, if we don’t configure any WCF endpoint.

To see how Default EndPoint works follow the steps below ,

Step1

Create a WCF service application.

Let us create two service contracts

IService1.cs

[ServiceContract]
 public interface IService1
 {

[OperationContract]
 string GetData();
 }

IService2.cs

[ServiceContract]
 public interface IService2
 {
 [OperationContract]
 string GetMessage();
 }



Now let us implement the service as below,

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WcfService1
{

 public class Service1 : IService1, IService2
 {
 public string GetData()
 {
 return "Hello From Iservice1 ";

}

public string GetMessage()
 {
 return " Hello From Iservice2";
 }

 }
}



Step 2

Now we will host this service in a console application, Create a new console application project.

Add reference of WCF service application project and also add reference of System.serviceModel in the console application project.

Note: There is no App.Config associated with console application.

clip_image002

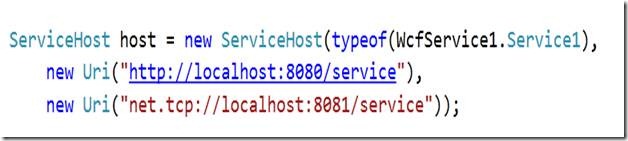

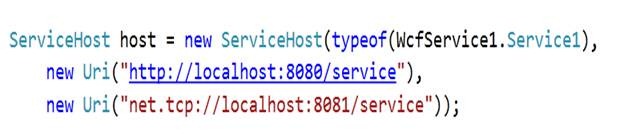

Here, we are registering two base addresses with the servicehost. One for http binding and other for nettcp binding.

Now we don’t have any configuration for the service EndPoint . ServiceHost will create default EndPoints .

Now ServiceHost will configure EndPoints for two base addresses

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using System.ServiceModel.Description;
using WcfService1;

namespace ConsoleApplication1
{
 class Program
 {
 static void Main(string[] args)
 {

ServiceHost host = new ServiceHost(typeof(WcfService1.Service1),
 new Uri("<a href="http://localhost:8080/service">http://localhost:8080/service</a>"),
 new Uri("net.tcp://localhost:8081/service"));

host.Open();
 foreach (ServiceEndpoint se in host.Description.Endpoints)
 {
 Console.WriteLine("Address: " +  se.Address.ToString() +
 "  Binding: " + se.Binding.Name +
 " Contract :"+ se.Contract.Name);
 }

Console.ReadKey(true);
 }
 }
}

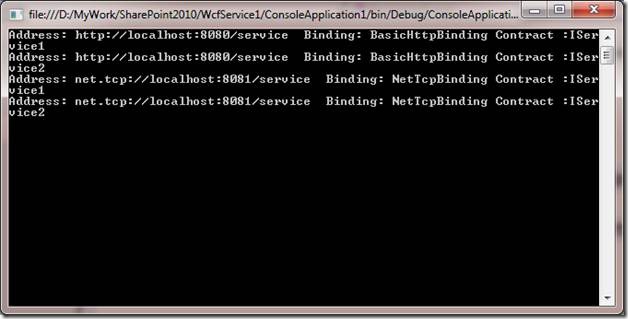

Output would be

clip_image004

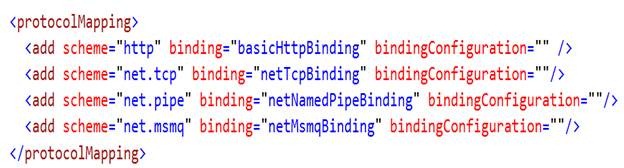

The default protocol mapping is as below,

clip_image006

Since HTTP is mapped with basicHttpBinding , so we got the default EndPoint with basicHttpBinding.

Default EndPoint will only get created if there is not a single Endpoint configured. If we add any single EndPoint then all then there won’t be any default EndPoint get configured.

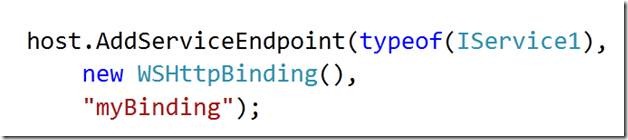

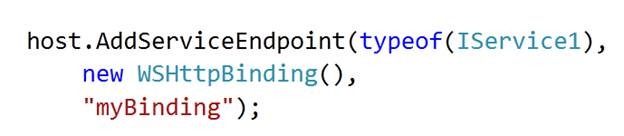

If we add one EndPoint as below,

clip_image008

We added one service EndPoint and now the output we would get for below code ad below,

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using System.ServiceModel.Description;
using WcfService1;

namespace ConsoleApplication1
{
 class Program
 {
 static void Main(string[] args)
 {

ServiceHost host = new ServiceHost(typeof(WcfService1.Service1),
 new Uri("<a href="http://localhost:8080/service">http://localhost:8080/service</a>"),
 new Uri("net.tcp://localhost:8081/service"));
 host.AddServiceEndpoint(typeof(IService1),
 new WSHttpBinding(),
 "myBinding");

host.Open();
 foreach (ServiceEndpoint se in host.Description.Endpoints)
 {
 Console.WriteLine("Address: " +  se.Address.ToString() +
 "  Binding: " + se.Binding.Name +
 " Contract :"+ se.Contract.Name);
 }

Console.ReadKey(true);
 }
 }
}

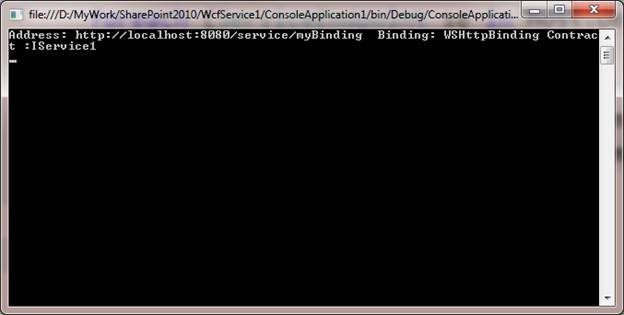

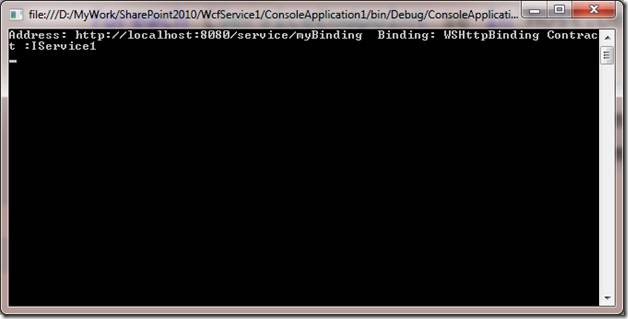

Output

clip_image010

Now we see that if we configure a EndPoint then WCF does not support default Endpoints.
