Objective

This article will give a quick walkthrough on how to consume a WCF REST Service in ASP.Net Web site.

1. Create a WCF REST Service.

2. Consume the Service in ASP.Net Web Site

Create a WCF REST Service

Step 1

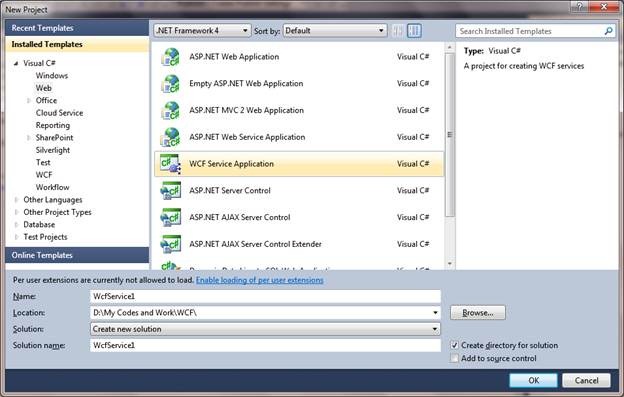

Create a WCF application. To create a new application File -> New -> Web-> WCF Service Application.

clip_image002

Step 2

Remove all the default code created by WCF. Remove code from IService 1 interface and Service1 class. Remove the code from Web.Config also. Open Web.Config and remove System.Servicemodel codes.

Step 3

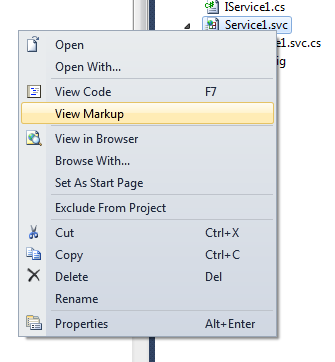

Right click on Service1.svc select View markup and add below code

clip_image003

<%@ ServiceHost Language=”C#” Debug=”true” Service=”FetchingImageinBrowser.Service1″ CodeBehind=”Service1.svc.cs” Factory=”System.ServiceModel.Activation.WebServiceHostFactory” %>

Step 4

Create contract. Operation contract will return Stream. Stream is in the namespace System.IO. By putting WebGet attribute make operation contract

IService1.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.ServiceModel.Web;
namespace WcfService6
{
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        [WebGet(UriTemplate="/GetData")]
        string GetData();
    }
}

Step 5

Implement the service

Service1.svc.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace WcfService6
{
    public class Service1 : IService1
    {
        public string GetData()
        {
            return "hello From REST ";
        }
    }
}

Press F5 to run the service

Consume the Service in ASP.Net Web Site

Step 1

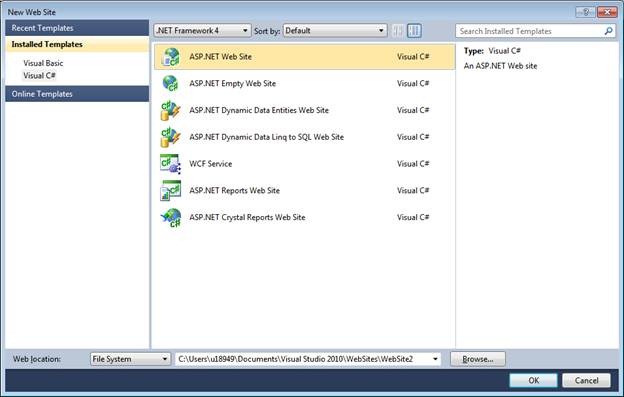

Create an ASP.Net Web Site. Navigate to File -> New -> Web Site

clip_image005

Step 2

Drag and drop one button and text box on the page.

Step 3

Add the namespace of

System.RunTIme.Serilization

System.Net

System.IO

Step 4

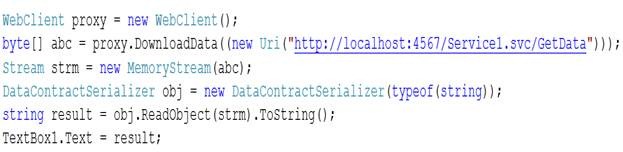

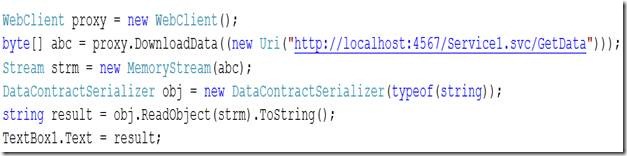

On the click event of the button,

clip_image007

In above code,

1. Create instance of WebClient class.

2. Down load the data in byte array form.

3. Create the stream from byte array

4. Using Data Contract Serializer deserialize the stream.

5. Get the result in string

Default.aspx.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Runtime.Serialization;
using System.Net;
using System.IO;
public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
    }
    protected void Button1_Click(object sender, EventArgs e)
    {
        WebClient proxy = new WebClient();
        byte[] abc = proxy.DownloadData((new Uri("http://localhost:4567/Service1.svc/GetData")));
        Stream strm = new MemoryStream(abc);
        DataContractSerializer obj = new DataContractSerializer(typeof(string));
        string result = obj.ReadObject(strm).ToString();
        TextBox1.Text = result;
    }
}

Run to get the output.

Advertisements

5 thoughts on “Consuming WCF REST Service in ASP.Net Web Site

  1. Hi Deepak ,

    Let us say you have custom type called STUDENT. You are returning List to client from WCF REST Service . In that case you will get at client side XML . You will have to parse that using LINQ to XML at client side to use. If it were a SOAP Service you could have used Data Contract to work with custom types.

    Thanks

  2. Can you provide me Perform all DML operations in database using WCFREST service And also Consume this service in my ASP.NET webPages
    plz help me

    send sourcecode to my mail Id:mandla.anilbabu@gmail.com
