Objective

This article will give step by step explanation on how to create a simple duplex service in WCF.

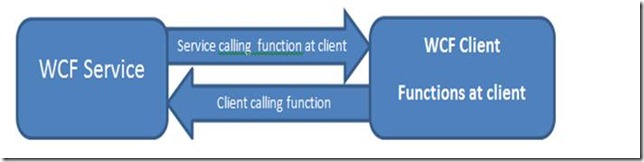

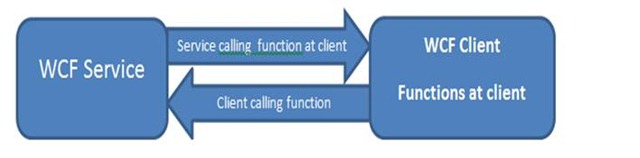

In call back operation or duplex service, Service can also call some function at the client .

clip_image002

1. Duplex service allows calling back some operation (function) on the client.

2. Duplex service also knows as Call Backs.

3. All Binding does not support duplex service.

4. Duplex communication is not standard. They are absolute Microsoft feature.

5. wsDualHttpBinding supports duplex communication over HTTP binding.

6. Duplex communication is possible over netTcpBinding and netNamedPipeBinding

Steps involved in creating a duplex service

1. Create a WCF Service

2. Create a call back contract.

3. Create service contract

4. Implement service and configure the behavior for duplex communication and call the client function at the service.

5. Configure the endpoint for duplex service

6. Create the client.

7. Call the WCF Service

Create a WCF Service

1. Open visual studio and create a new project. Select WCF Service application from WCF project template tab.

2. Delete all the default generated code.

3. If using VS2010, open web.config and comment serviceHostEnvironment as below.

clip_image004

4. If using VS2008 then delete the default End Point generated.

5. Now you are left with empty IService1 and Service1.svc.cs file.

Create a call back contract

1. Open IService1.cs .

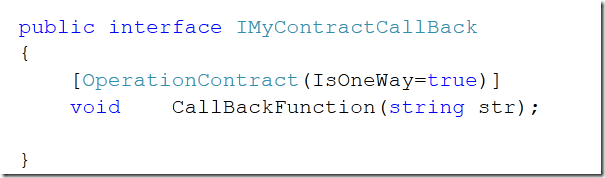

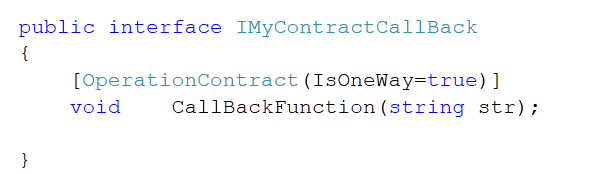

2. Add an interface in the same file. Give any name of the interface. I am giving name here IMyContractCallBack

clip_image005

3. Create an operation contract in the Interface.

4. Make sure return type is Void.

5. Make sure IsOneWayProperty is set to true.

6. There is no need to mark call back interface as ServiceContract.

Explanation

At the client side, this call back interface will get implemented and on a duplex channel Service will call the CallBackFunction from the client.

Create service contract

1. Open IService1.

2. Declare operation contract called from the client. Make the isoneway to property to true from the service operation contract also.

clip_image006

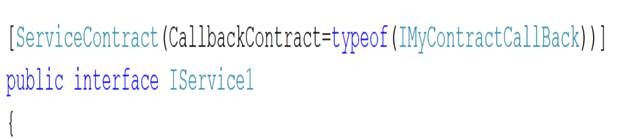

3. Set the CallBackContract in Service contract attribute. Set the call back contract as the interface created for the call back.

clip_image008

Here IMyContractCallBack is name of the interface user for duplex communication.

So Service contract and call back contract will be as below,

IService1.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace WcfService3
{
    [ServiceContract(CallbackContract=typeof(IMyContractCallBack))]
    public interface IService1
    {
        [OperationContract(IsOneWay=true)]
        void NormalFunction();
    }
    public interface IMyContractCallBack
    {
        [OperationContract(IsOneWay=true)]
        void CallBackFunction(string str);
    }
}

Implement service and configure for duplex communication and call client function 1. In service behavior set the instance mode of the service to percall. clip_image010

2. Create a call back channel

clip_image012

Here I am using OperationConetxt to get current call back channel. 3. Now instance of IMyContractCallBack can be used to make call at the function in call back interface contract at the client side. Like below ,

clip_image013

Here we are going to call function at the client side from the operation contract of the service.

Service1.svc.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace WcfService3
{
    [ServiceBehavior(InstanceContextMode= InstanceContextMode.PerCall)]
    public class Service1 : IService1
    {
        public void     NormalFunction()
        {
            IMyContractCallBack callback = OperationContext.Current.GetCallbackChannel<IMyContractCallBack>();
            callback.CallBackFunction("Calling from Call Back");
        }
    }
}

Configure the endpoint for duplex service

As we discussed earlier that duplex service is not supported by all type of bindings. So while configuring the end point for the service we need to choose the binding supports duplex communication. Here we are going to use wsDualHttpBinding

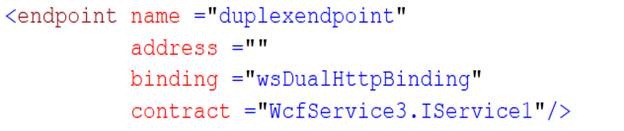

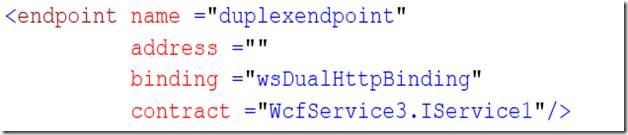

1. Declare the end point with wsDualHttpBinding.

clip_image015

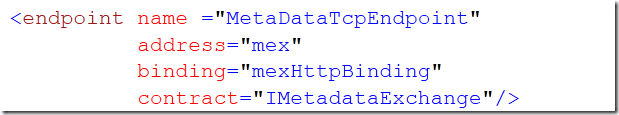

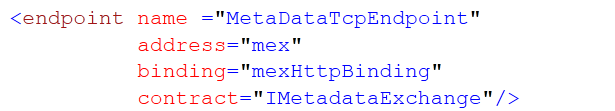

2. Declare the Meta data exchange end point.

clip_image016

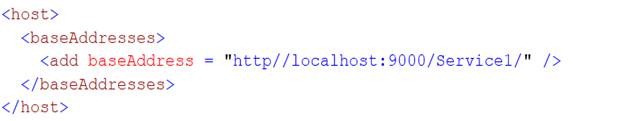

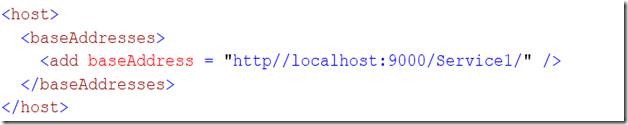

3. Declare the host address

clip_image018

4. Declare the service behavior

clip_image020

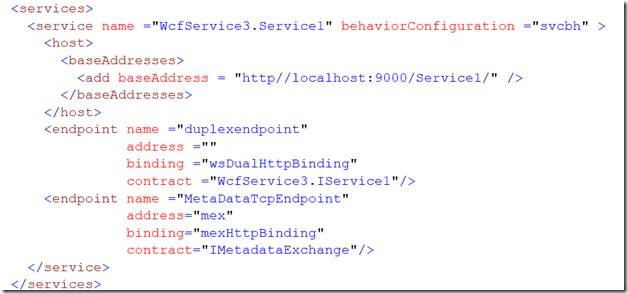

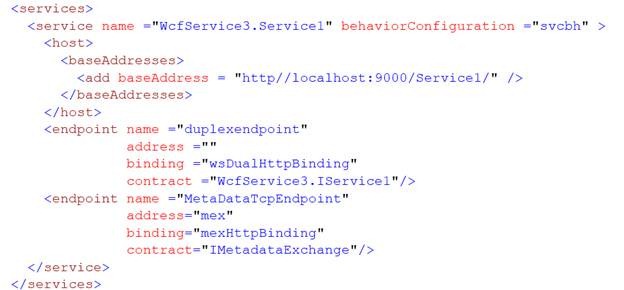

So the service in configuration will look like

clip_image022

Web.Config

<?xml version="1.0"?>
<configuration>
  <system.web>
    <compilation debug="true" targetFramework="4.0" />
  </system.web>
  <system.serviceModel>
    <behaviors>
      <serviceBehaviors>
        <behavior name ="svcbh">
          <serviceMetadata httpGetEnabled="False"/>
          <serviceDebug includeExceptionDetailInFaults="False"/>
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <!--<serviceHostingEnvironment multipleSiteBindingsEnabled="true" />-->
    <services>
      <service name ="WcfService3.Service1" behaviorConfiguration ="svcbh" >
        <host>
          <baseAddresses>
            <add baseAddress = "http//localhost:9000/Service1/" />
          </baseAddresses>
        </host>
        <endpoint name ="duplexendpoint"
                  address =""
                  binding ="wsDualHttpBinding"
                  contract ="WcfService3.IService1"/>
        <endpoint name ="MetaDataTcpEndpoint"
                  address="mex"
                  binding="mexHttpBinding"
                  contract="IMetadataExchange"/>
      </service>
    </services>
  </system.serviceModel>
 <system.webServer>
    <modules runAllManagedModulesForAllRequests="true"/>
  </system.webServer
</configuration>

Create the client

1. Create a console application to consume this service.

2. Add the reference of System.ServiceModel. In console application project.

3. Add the service reference of the service, we created in previous steps.

Create a duplex proxy class to implement call back contract

1. Right click and add a class in console application. Give any name; I am giving the name MyCallBack.

2. Add the namespace

clip_image024

3. Implement call back contract. In our case it is IService1Callback and IDisposable.

clip_image025

Note: Since name of the service contract is IService1, so the call back interface name will be IService1Callback . It is name of service contract suffixes by keyword CallBack.

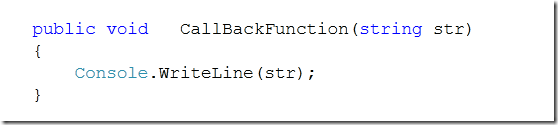

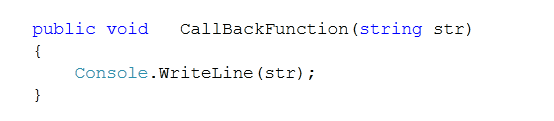

4. Now implement the call back contract method in this class.

clip_image026

5. Now make a function in this class to create duplex proxy.

a. Create an instance of InstanceContext and pass the reference of current class in the constructor of that.

clip_image027

b. Pass this context as parameter of service1client

clip_image028

c. Call the service on this proxy

clip_image029

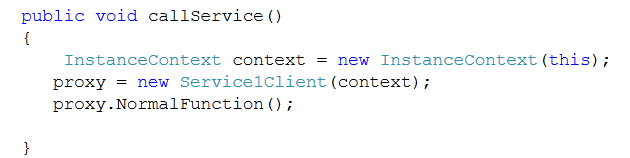

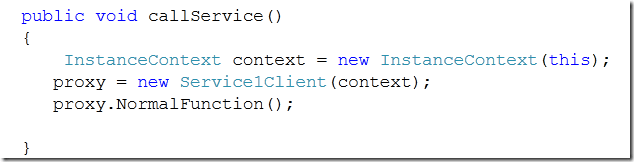

So, the function will be

clip_image030

For your reference MyCallback class will be as below,

MyCallback.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using ConsoleApplication1.ServiceReference1;
using System.ServiceModel;
namespace ConsoleApplication1
{
    class MyCallBack :IService1Callback ,IDisposable
    {
        Service1Client proxy;
        public void   CallBackFunction(string str)
        {
            Console.WriteLine(str);
        }
        public void callService()
        {
           InstanceContext context = new InstanceContext(this);
           proxy = new Service1Client(context);
           proxy.NormalFunction();
        }
        public void Dispose()
        {
            proxy.Close();
        }
    }
}

Call the WCF Service

Create the instance of MyCallBack class and call the callService() method to call the service.

Program.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using ConsoleApplication1.ServiceReference1;
using System.ServiceModel;
namespace ConsoleApplication1
{
    class Program
    {
        static void Main(string[] args)
        {
            MyCallBack obj = new MyCallBack();
            obj.callService();
            Console.Read();
            obj.Dispose();
        }
    }
}

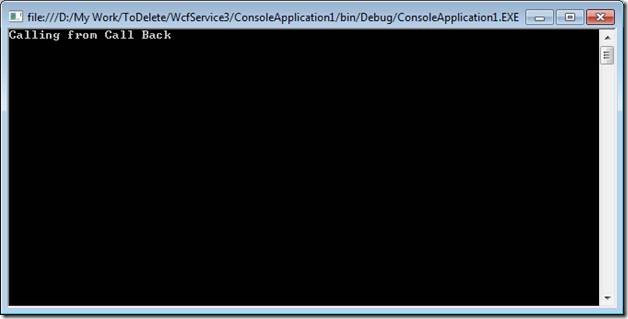

Output

clip_image032
