ASP.Net GridView with LinqDataSource

In this post I will walkthrough on using ASP.Net Gridview with LinqDatasource.

You can bind a GridView with LinqDataSource and would able to

  1. Edit
  2. Delete
  3. View data without writing a single line of code.

To see how it works , follow the steps below;

Step1

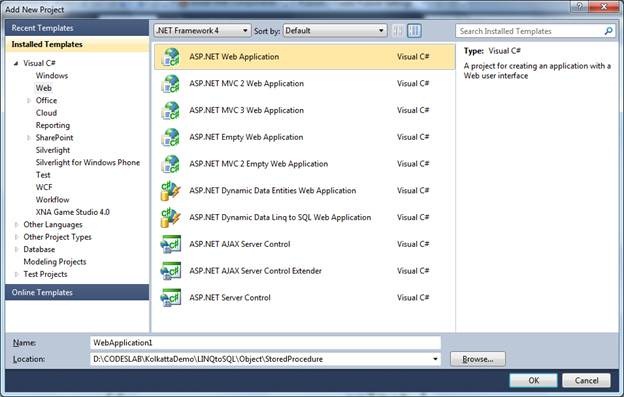

Crate a ASP.Net Web Application.

clip_image002

Step 2

Right click and add a new item in ASP.Net Web Application project. Choose LINQ to SQL class from Data tab.

clip_image004

Drag and drop tables from Server Explorer to generate Data Context class. I am creating Data Context class from School Database by selceting Person table.

clip_image005

Now Data Context class has been created.

Step 3

Go ahead and drag and drom a GridView on Default.aspx page.

clip_image006

Switch to the design view on Default.aspx page . Select Properties of GridView by clicking on the arrow key at right top of GridView and then Choose Data Source option selcet New data source.

clip_image007

From the dialog box you need to choose LINQ and if you want you can edit the data source name as well. I am leaving default data source name LinqDataSource1

clip_image009

Next you need to choose the context object . We have already created DataContext named DataClasses1DataContext1 .Choose DataClasses1DataContext1 as context object .

clip_image011

After choosing context object click on Next button . From next dialog box choose table and columns you want to bind grid view . Click on the advanced button,

clip_image013

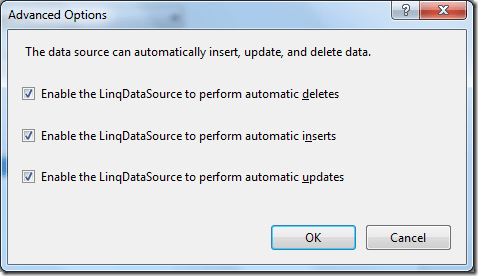

Since you want data in grid view editable. So go ahead and checked all the three options.

clip_image014

Click Ok and clcik on Finish

Step 4

Since you want to Edit, Delete and Insert data from Grid View. So open properties of GridView and enable the options by cheking the chekboxes.

clip_image015

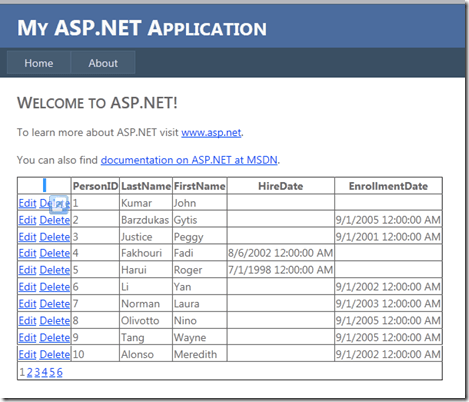

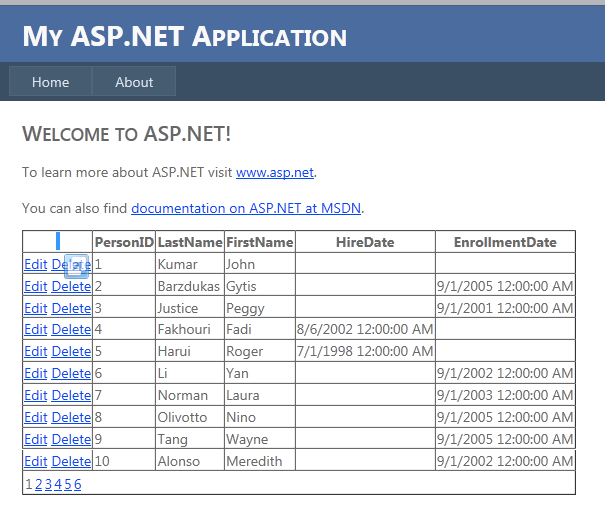

You have done it . Press F5 to run the appliction. You would able to Edit, Delete and View the data in Grid View without writing a single line of code.

clip_image016

I hope this post was useful. Thanks for reading Smile



***********************
