Consuming WCF SOAP Service in Windows 8 Metro Application

In this post we will consume WCF SOAP Service in C#/XAML based Metro Application. This is level 100 post showing basic steps to create simple WCF Service and consume that in Metro Application.

Very first let us create a WCF Service using VS2012. Form File menu create a new project by choosing WCF Service Application project template from WCF tab.


Remove all the default code from IService1.cs and replace it with following code. In below service contract we are going to return a simple greeting message. From client a name as string will be input to the service and service will return a greeting message as string.

IService1.cs


using System.ServiceModel;
namespace ServiceToConsumeinMetro
{
 [ServiceContract]
 public interface IService1
 {

[OperationContract]
 string GreetingMessage(string name);

 }

}

Service is implemented as following. It is concatenating two string and returning it .

Service1.svc.cs


namespace ServiceToConsumeinMetro
{

 public class Service1 : IService1
 {
 public string GreetingMessage(string name)
 {
 return "Welcome to Metro Word " + name;
 }
 }
}

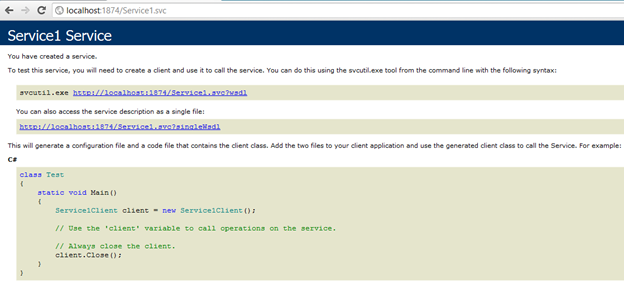

We will go with the default binding and will not configure anything in Web.Config. Leave Web.config as it is and press F5 to run and host created WCF service in local server. On successful running in your browser you should have below output.

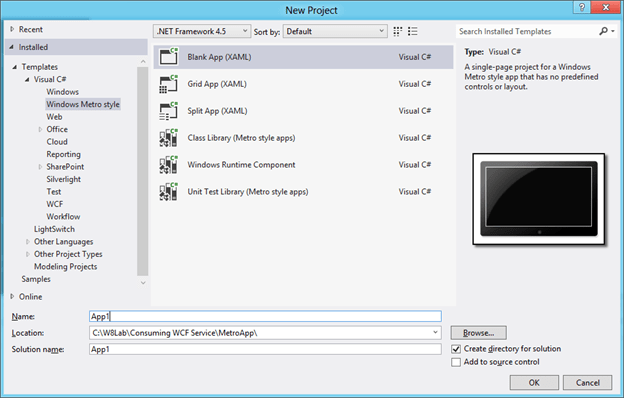

Now let us create a Metro Application to consume this service. From File menu in VS 2012 choose Blank App project template from Windows Metro Style tab.


Next let us design the page. On the page we are going to put one TextBox, One Button and one TextBlock. User will enter Name in textbox and on the click event of the button service will be called. Returned output from service will be displayed in the textblock. Xaml is as following

MainPage.xaml


<Page
 x:Class="App1.MainPage"
 IsTabStop="false"
 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
 xmlns:local="using:App1"
 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
 xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
 mc:Ignorable="d">

<Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
 <Grid.RowDefinitions>
 <RowDefinition Height="200" />
 <RowDefinition Height="200" />
 <RowDefinition Height="200" />
 </Grid.RowDefinitions>
 <TextBox x:Name="txtName" Margin="286,25,583,113" />
 <Button x:Name="btnCallService" Content="Enter Name above and touch to call service" Height="100" Width="364" Grid.Row="1" Margin="367,10,0,90" Click="btnCallService_Click_1"/>
 <TextBlock x:Name="textResult" Grid.Row="2" FontSize="30" FontWeight="Bold" />
 </Grid>
</Page>

Next we need to add Service Reference in the Metro project. For that right click on Metro Application project Reference tab and select Add Service Reference

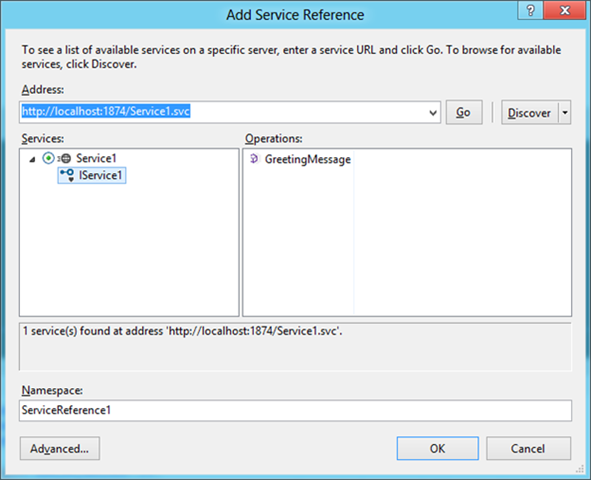

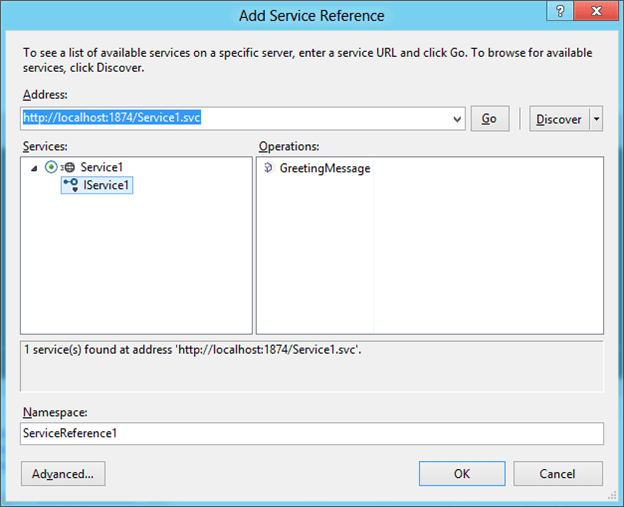

Add the reference as following. My metro application name is App1. If your Metro application name is XYZ then you will be adding XYZ.ServiceReference1 provided you have not changed reference name while adding it.


In Metro word everything is asynchronous. So we need to make async call to service. When you add reference automatically visual studio creates async function for you.


We can call this function from service as following

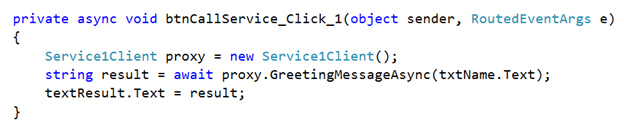

If you notice we have put await keyword before making a call to service. Since service is called in await manner so the function inside which we are calling service must be async. On click event of the button service can be called as following


Combining all discussion together code behind will look like as following

using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Navigation;
using App1.ServiceReference1;

namespace App1
{

 public sealed partial class MainPage : Page
 {
 public MainPage()
 {
 this.InitializeComponent();
 }

protected override void OnNavigatedTo(NavigationEventArgs e)
 {
 }

private async void btnCallService_Click_1(object sender, RoutedEventArgs e)
 {
 Service1Client proxy = new Service1Client();
 string result = await proxy.GreetingMessageAsync(txtName.Text);
 textResult.Text = result;
 }
 }
}

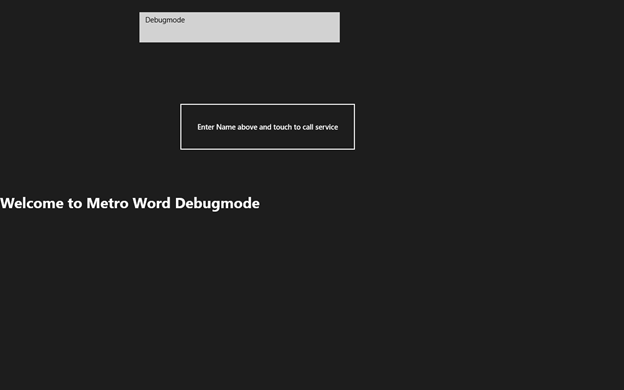

On running you should be getting output as following


I am sorry for poor UI experience but any way making UI immersive was not purpose of this post. I hope now you know basic steps to consume WCF SOAP service in metro application.
