Fetching selected value from List Box in Silverlight

Let us say you have a list box as below. You have a requirement that on click of button fetch value of the same row button belongs to.

For example if you are clicking second cross, you should able to fetch value Pinal, SqlServer , 500 from the list box.

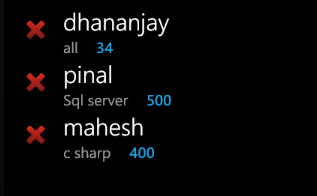

clip_image001

In above list box

  • There is a button (cross image) in each item.
  • Text blocks bind with data.
  • List box is bind to the collection.

XAML of list box is as below,

<ListBox x:Name="lstData" Margin="5,7,6,15">
<ListBox.ItemTemplate>
<DataTemplate >
<Grid x:Name="TopGrid">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="50" />
<ColumnDefinition Width="*" />
</Grid.ColumnDefinitions>
<Button Margin="5,5,5,5" Click="Button_Click">
<Button.Template >
<ControlTemplate >
<Image Source="delete.png" VerticalAlignment="Center"   Height="30" Width="30"/>
</ControlTemplate>
</Button.Template>
</Button>
<Grid x:Name="nestedGrid" Grid.Column="1">
<Grid.RowDefinitions>
<RowDefinition Height="auto" />
<RowDefinition Height="auto" />
</Grid.RowDefinitions>
<TextBlock Text="{Binding Name}" Style="{StaticResource PhoneTextTitle2Style}" />
<StackPanel Grid.Row="1" Orientation="Horizontal">
<TextBlock Text="{Binding Interest}"  Style="{StaticResource PhoneTextSubtleStyle}" />
<TextBlock Text="{Binding Totalposts}" Style="{StaticResource PhoneTextAccentStyle}"/>
</StackPanel>
</Grid>
</Grid>
</DataTemplate>
</ListBox.ItemTemplate>

&nbsp;

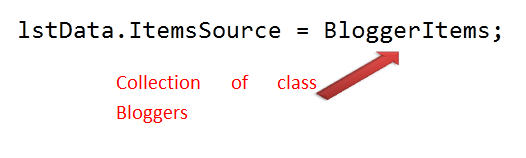

Item source of list box is set to List of Bloggers.


Bloggers class is as below,

Note: Make sure you are calling OnNotifyPropertyChanged() after seeting the value of the property [Edited]


public class Bloggers : INotifyPropertyChanged
{
private string name;
public string Name
{
get
{
return name;
}
set
{
NotifyPropertyChanged("Name");
name = value;
}
}

private string interest;
public string Interest
{
get
{
return interest;
}
set
{
NotifyPropertyChanged("Interest");
interest = value;
}
}

private int  id;
public int  Id
{
get
{
return id;
}
set
{
NotifyPropertyChanged("Id");
id = value;
}
}

private int  totalposts;
public int Totalposts
{
get
{
return totalposts;
}
set
{
NotifyPropertyChanged("Totalposts");
totalposts = value;
}
}

#region INotifyPropertyChanged Members

public event PropertyChangedEventHandler PropertyChanged;

// Used to notify the page that a data context property changed
private void NotifyPropertyChanged(string propertyName)
{
if (PropertyChanged != null)
{
PropertyChanged(this, new PropertyChangedEventArgs(propertyName));
}
}

#endregion

&nbsp;

}

&nbsp;

Now on click event of button if you want to fetch particular list item then first take data context as blogger

clip_image002

Then fetch list box item as below,

clip_image004

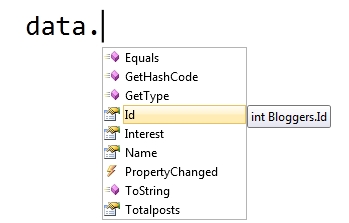

Now you would able to use data as below

clip_image005

On click event of button you need to write code as below to fetch particular item list value.


private void Button_Click(object sender, RoutedEventArgs e)
{

Bloggers data = (sender as Button).DataContext as Bloggers;
ListBoxItem bloggerToDeleteFromListBox = this.lstData.ItemContainerGenerator.ContainerFromItem(data)
as ListBoxItem;
var Name = data.Name
}

In this way you can fetch the value of particular list item. I hope this post was useful. Thanks for reading J
