Binding Image with Picture Library Images in Windows Store Application using FileOpenPicker

In this post we will take a look on binding image with Picture Library Images in Windows Store. In this post we will follow following steps

  • User will click on a button
  • On button click user will be select an image from Picture Library
  • Selected image will be bind to image control on the page

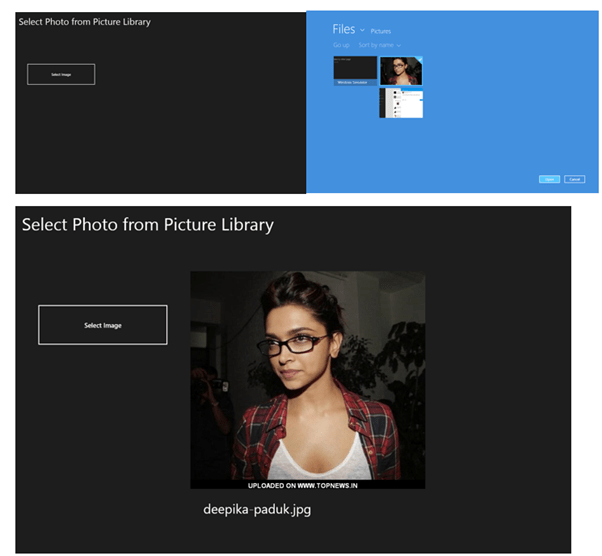

Application will behave as following,


In XAML based Windows Store Application object of FileOpenPicker allows us to choose files from Picture Library and Document Library. Essentially we will create instance of FileOpenPicker on click event of button and then restrict user to select only images. Once user has selected image, we will bind that Image to image control on the page.

Let us start with designing the page. Page design is very simple with button, image control and two text blocks.


<Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
 <Grid.RowDefinitions>
 <RowDefinition Height="100" />
 <RowDefinition Height="*" />
 </Grid.RowDefinitions>
 <TextBlock Text="Select Photo from Picture Library" Margin="15,20,0,0" FontSize="40"/>
 <StackPanel Orientation="Horizontal" Grid.Row="1">
 <Button x:Name="btnFilePickerOpen" Click="btnFilePickerOpen_Click_1" Content="Select Image" Width="303" Height="97" Margin="50,50,0,403"/>
 <StackPanel Orientation="Vertical" Margin="50,50,0,0">
 <Image x:Name="imgSelected" />
 <TextBlock x:Name="txtSelectedImagePath" Margin="30,30,0,0" FontSize="30" />
 </StackPanel>
 </StackPanel>
 </Grid>

On click event of button we will create object of FileOpenPicker and allow user to select an image. We need to follow following steps

  • Create object of FileOpenPicker
  • Select ViewMode. There are two ViewModes available Thumbnail and List. Let us choose Thumbnail for our demo.
  • Provide SuggestedStartLocation. Let us select PicturerLibrary since we want to choose an image. Other options are VideosLibrary, DocumetsLibrary etc.
  • Apply filter. We can apply filters on type of files we will allow user to choose. We are adding file types jpg,jpeg and png.
  • In last step asynchronously we are calling PickSingleFileAsync function and taking reference of selected file in StorageFile.
FileOpenPicker openPicker = new FileOpenPicker();
 openPicker.ViewMode = PickerViewMode.Thumbnail;
 openPicker.SuggestedStartLocation = PickerLocationId.PicturesLibrary;
 openPicker.FileTypeFilter.Add(".jpg");
 openPicker.FileTypeFilter.Add(".jpeg");
 openPicker.FileTypeFilter.Add(".png");
 StorageFile file = await openPicker.PickSingleFileAsync();
 if (file != null)
 {

 }
 else
 {

 }

On successful selection of file we need to convert that in image stream and bind that to image control. We are creating instance of BitmapImage and reading file stream in that. After successful reading setting bitmap image as source of image control.


if (file != null)
 {
 txtSelectedImagePath.Text = file.Name;
 var filestream = await file.OpenAsync(Windows.Storage.FileAccessMode.Read);
 BitmapImage imagetobind = new BitmapImage();
 imagetobind.SetSource(filestream);
 imgSelected.Source = imagetobind;

 }
 else
 {
 txtSelectedImagePath.Text = "Some problem fetching file ";
 }

&nbsp;

This is what all we need to do to fetch an image from picture library and bind it to image control. Full source code of button click is given below,


private async void btnFilePickerOpen_Click_1(object sender, RoutedEventArgs e)
 {
 FileOpenPicker openPicker = new FileOpenPicker();
 openPicker.ViewMode = PickerViewMode.Thumbnail;
 openPicker.SuggestedStartLocation = PickerLocationId.PicturesLibrary;
 openPicker.FileTypeFilter.Add(".jpg");
 openPicker.FileTypeFilter.Add(".jpeg");
 openPicker.FileTypeFilter.Add(".png");
 StorageFile file = await openPicker.PickSingleFileAsync();
 if (file != null)
 {
 txtSelectedImagePath.Text = file.Name;
 var filestream = await file.OpenAsync(Windows.Storage.FileAccessMode.Read);
 BitmapImage imagetobind = new BitmapImage();
 imagetobind.SetSource(filestream);
 imgSelected.Source = imagetobind;

 }
 else
 {
 txtSelectedImagePath.Text = "Some problem fetching file ";
 }
 }

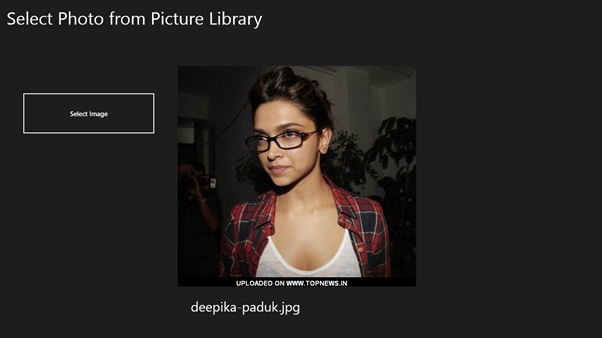

Now when you run application you will able to choose an image from Picture Library and bind it to image control.


I hope you find this post useful. Thanks for reading.
