Basic Operations on Windows Azure Table in Windows Azure Storage in Storage Client Library 2.0

In this post we will take a look on performing basic operations on Windows Azure table using Windows Azure Storage Client Library 2.0.

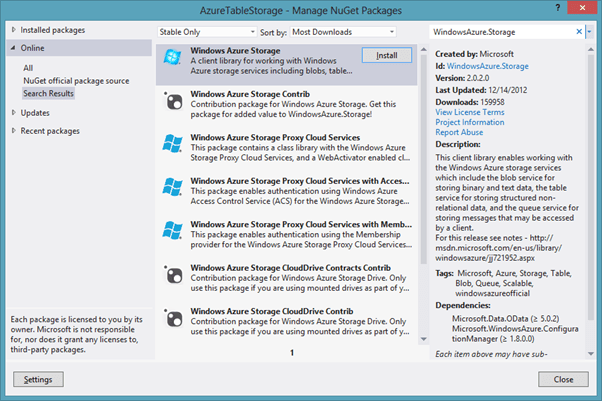

To work with Windows Azure Storage Client 2.0 grab the library from NuGet package. Right click on the project and select Manage NuGet Packages. In NuGet Package Manager and type WindowsAzure.Storage to search. Click on the Install to add library in the project.


After adding references of Windows Azure Storage Client Library version 2.0, you need to add following namespace


We can create a table as like following. Create an instance of CloudStorageAccount. To create this instance you need to pass StorageCredentials object. Second parameter in creating CloudStorageAccount is bollean value true. It says to use https connection while working with Windows Azure Storage account.


After creating object of storage account, we need to create instance of CloudTabaleClient, We can create that as following,


Last step in creating Azure Table is to take a reference of CloudTable and create it if not exist. Studenttable is name of the table, we are intended to create here.


A Table can be deleted as following


Consolidating all the above discussion we can create a table with HTTPS connection using Windows Azure Storage Client Library 2.0 is as following,


using Microsoft.WindowsAzure.Storage;
using Microsoft.WindowsAzure.Storage.Auth;
using Microsoft.WindowsAzure.Storage.Table;
using System;

namespace AzureTableStorage
{
 class Program
 {
 static void Main(string[] args)
 {
 CloudStorageAccount account = new CloudStorageAccount(new StorageCredentials("youraccountname", "youraccountkey"),true);
 CloudTableClient tableClient = account.CreateCloudTableClient();
 CloudTable table = tableClient.GetTableReference("Studenttable");
 table.CreateIfNotExists();
 }
 }

We are going to work with Studenttable. To represent entity of Studenttable let us create StudentEntity class as given in following code snippet. Make sure to inherit the class from TableEntity class.


public class StudentEntity : TableEntity
 {
 public StudentEntity()
 {
 PartitionKey= "Student";
 RowKey= Guid.NewGuid().ToString();
 }
 public double RollNumber { get; set; }
 public string Name { get; set; }
 public string Grade { get; set; }

}

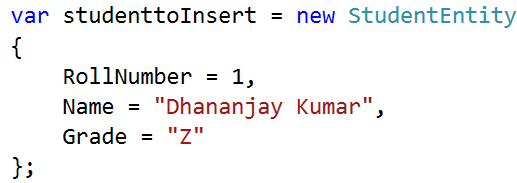

We can insert an entity in table as following. Very first we need to create object of entity class or in other words need to create entity object to insert. We can create that as following,


Once entity to insert has been created next we need to create a TableOperationInsert. In the Insert function of TableOperation pass entity to be inserted. In this case studenttoInsert is the entity to be inserted hence passed as parameter. In last need to execute operation by passing it as input parameter of Execute function on instance of CloudTable.


Entity can be deleted by creating delete operation and executing it


In last let us consolidate all the discussions and full source code for working with Windows Azure table using Windows Azure Storage Client Library 2.0 is as following.

using Microsoft.WindowsAzure.Storage;
using Microsoft.WindowsAzure.Storage.Auth;
using Microsoft.WindowsAzure.Storage.Table;
using System;

namespace AzureTableStorage
{
 class Program
 {
 static void Main(string[] args)
 {
 // Creating Storage Account
CloudStorageAccount account = new CloudStorageAccount(new StorageCredentials("youraccountname", "youraccountkey"),true);

//Creating Table Client
 CloudTableClient tableClient = account.CreateCloudTableClient();
 //Creating Table
 CloudTable table = tableClient.GetTableReference("Studenttable");
 table.CreateIfNotExists();
 //Creating Entity to insert
 var studenttoInsert = new StudentEntity
 {
 RollNumber = 1,
 Name = "Dhananjay Kumar",
 Grade = "Z"
 };

// Inserting an entity
 TableOperation operationToInsert = TableOperation.Insert(studenttoInsert);
 table.Execute(operationToInsert);
 Console.WriteLine("Student Entity Inserted ");
 Console.ReadKey(true);
 //Deleting an enitity
 TableOperation operationToDelete = TableOperation.Delete(studenttoInsert);
 table.Execute(operationToDelete);
 Console.WriteLine("Student Entity Deleted");
 Console.ReadKey(true);
 }
 }
}

I shall conclude this post by saying that we learnt how to perform basic operations on Windows Azure table using Windows Azure Storage Client Library 2.0. In further posts we will explore much more complex operations on Windows Azure table.
