List valid Data Center Locations for a Subscription using Windows Azure Management API

Windows Azure Management API enables you to manage Azure subscription through codes. In this post, I will show, how could you list valid datacenter locations available for given subscription using Windows Azure Management API?

Windows Azure Management API is REST based API and allows you to perform almost all management level tasks with Azure subscription.

Any client making call to Azure portal using Management API has to authenticate itself before making call. Authenticating being done between Azure portal and client calling REST based Azure Management API through the certificates.

Read here to create certificate for Azure subscription

Read here to upload certificate

Video on Creating and Uploading Certificate for Windows Azure

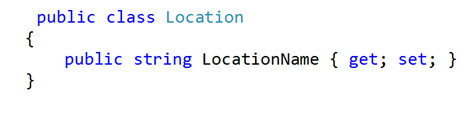

Very first let us create a class representing Locations. There is property representing location name.


Essentially you need to perform below steps,

You need to create a web request to below URL. Provide desired subscription Id to fetch the locations. After subscription you need to add locations to get all the locations for given subscription

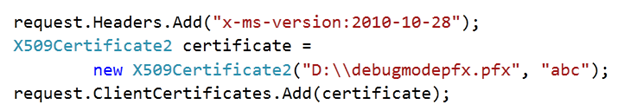

While making request you need to make sure you are calling the correct version and adding the cross ponding pfx certificate of your subscription level certificate. To list locations for given subscription header should me either 2010-10-28 or later .


abc is password to use PFX certificate

Get the stream and convert response stream in string


You will get the XML response in below format,

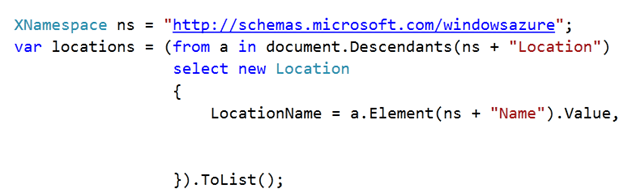

Once XML is there in form of string you need to extract Location name from XML element using LINQ to XML. You can parse location from xml as below


On running you should get all the hosted service. For me there is only one hosted service debugmode9 under my Azure subscription.


For your reference full source code is as below,


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using ConsoleClient.ServiceReference1;
using System.Xml.Linq;
using System.Net;
using System.Security.Cryptography.X509Certificates;
using System.IO;

namespace ConsoleClient
{
class Program
{
static void Main(string[] args)
{
var result = GetLocations("-4761-bced-b75fcde0d7e1").ToList();

foreach (var r in result)
{
Console.WriteLine(r.LocationName);
}
Console.ReadKey(true);
}



private staticĀ  List<Location> GetLocations(string SubscriptionId)
{
var request = (HttpWebRequest)WebRequest
.Create("<a href="https://management.core.windows.net/&quot;+SubscriptionId+&quot;/locations">https://management.core.windows.net/"+SubscriptionId+"/locations</a>");

request.Headers.Add("x-ms-version:2010-10-28");
X509Certificate2 certificate =
new X509Certificate2("D:\\debugmodepfx.pfx", "abc");
request.ClientCertificates.Add(certificate);

var response = request.GetResponse().GetResponseStream();
var xmlofResponse = new StreamReader(response).ReadToEnd();
XDocument doc = XDocument.Parse(xmlofResponse);
XElement document = XElement.Parse(xmlofResponse);

XNamespace ns = "<a href="http://schemas.microsoft.com/windowsazure">http://schemas.microsoft.com/windowsazure</a>";
var locations = (from a in document.Descendants(ns + "Location")
select new Location
{
LocationName = a.Element(ns + "Name").Value,
}).ToList();
return locations;

}

public class Location
{
public string LocationName { get; set; }
}

}

&nbsp;

I hope this post was useful. Thanks for reading Smile
