Walkthrough creating REST Service in WCF 4.0

Objective

This article will explain step to step explanation of, how to create a REST based service and how to consume that in a managed client.

Step 1`

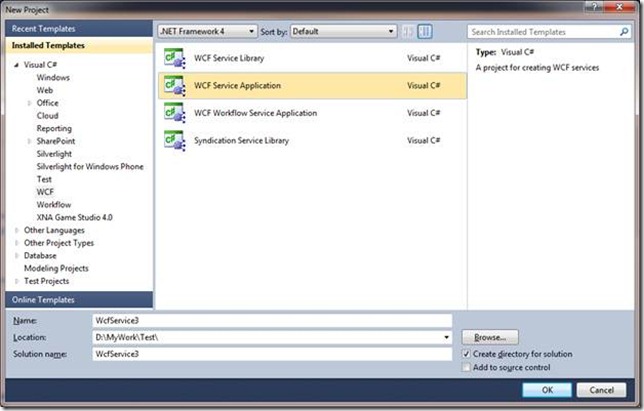

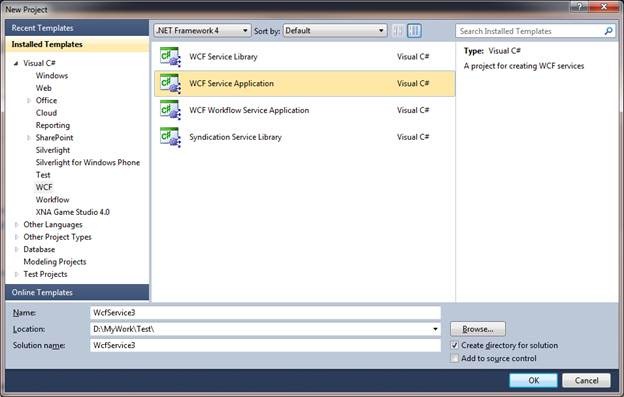

Create a new project as WCF Service application type.

clip_image002

Step 2

Delete all the default code from IService.cs and Service.svc.cs

Now open Web.Config file and delete <system.serviceModel>

If you are using VS2010 then delete below code from Web.Config

clip_image004

Step 3

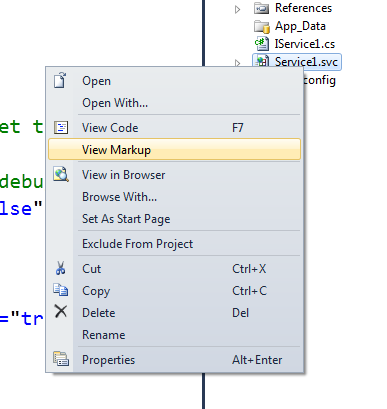

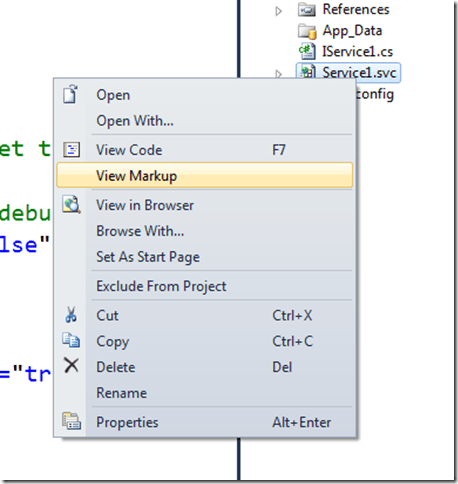

Right click on Service.svc and open View markup.

clip_image005

In Markup of RestService.cs , add below code there

Factory=”System.ServiceModel.Activation.WebServiceHostFactory”

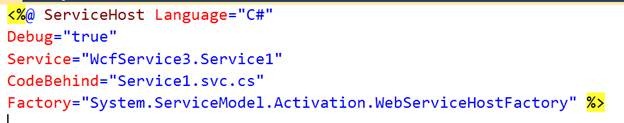

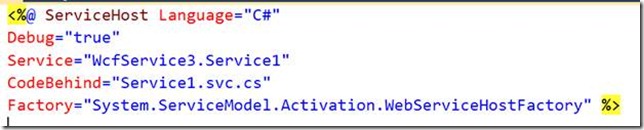

So after adding code the markup would look like

Markup of RestService.cs

clip_image007

Step 4

Add following references to the WCF Service Application project, if you are using VS2010

Microsoft.Http.dll

Microsoft.Http.Extension.dll

System.ServiceModel.Web.dll

Step 5

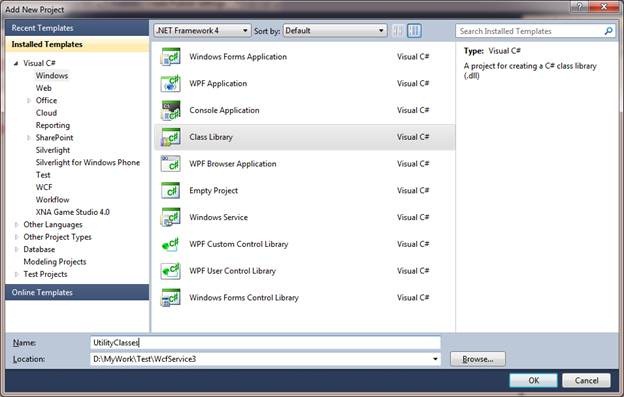

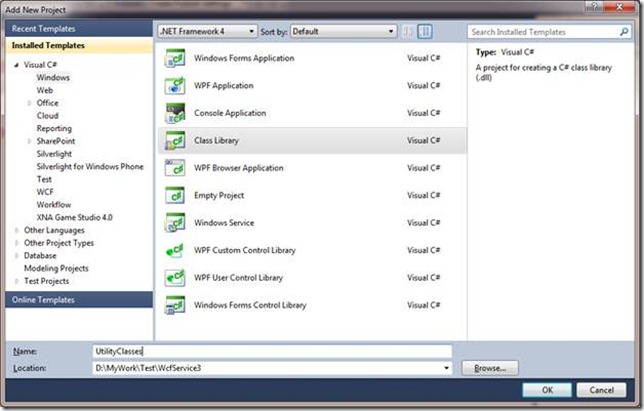

Add a new project as of type class library and give it name UtilityClasses.

clip_image009

Add a class Number to this class library.

Number.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
namespace UtilityClasses
{
 [Serializable]
 public class NumberService
 {
 public int Number1 { get; set; }
 public int Number2 { get; set; }
 }
}



Step 6

Define the Service Contract as below,

IService1.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.Text;
using System.ServiceModel.Web;
using UtilityClasses;

namespace WcfService3
{

 [ServiceContract]
 public interface IService1
 {
 [OperationContract(Name="AddParameter")]
 [WebInvoke(UriTemplate = "/Add/MyAdd",Method="POST")]
 int  Add(NumberService n1);
 [OperationContract(Name = "Add")]
 [WebGet(UriTemplate = "/")]
 int Add();

}

}



This code is used to construct URI for REST service.

clip_image010

Method parameter says what type of HTTP request; this URI is going to entertain. In this case it is Http POST.

UriTemplate parameter says, what would be URI for this particular method. In this case it is one back slash means; it is root URI of this service.

So, to invoke this method add (), the URI address would be

http://localhost:3602/RestService.svc/

Where 3602 is port number of web server, where this service is running.

Let, if the above code is modified as

clip_image012

Then it would be invoked as

http://localhost:3602/RestService.svc/ADD/MyAdd

Step 7

Now we need to implement the service

Service1.svc.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using UtilityClasses;

namespace WcfService3
{

 public class Service1 : IService1
 {
 public int res = 100;

public int Add(NumberService n1)
 {

res = Convert.ToInt32(n1.Number1) + Convert.ToInt32(n1.Number2);
 return res;
 }
 public int Add()
 {
 return res;
 }
 }
}

&nbsp;



Step 8

Test the Service in Browser

1. Build the Service

2. Right click on Service1.svc and select view in browser.

clip_image014

Output 100 is returned in the browser by the service. It is because, below service method. URI of below GET method is mapped to root of the URI. And this method is returning 100.

clip_image015

Step 9

Consume the service

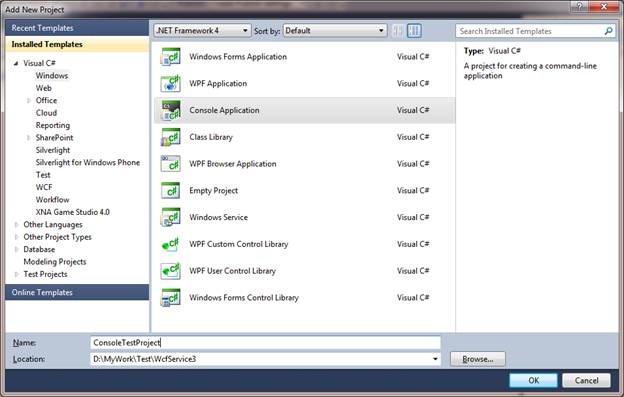

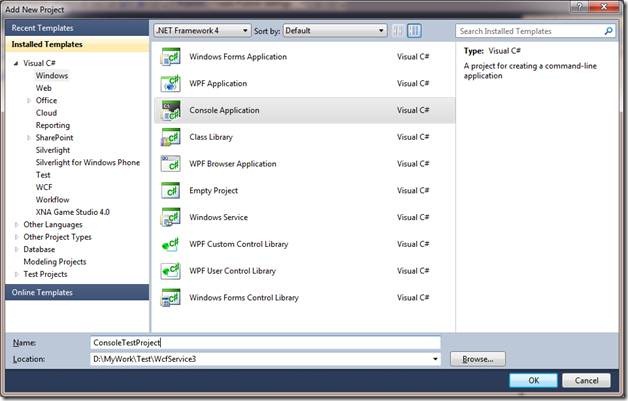

Add new console project in solution and give it name as ConsoleTestProject.

clip_image017

Add reference of project UtilityClasses Add following references to the console project.

Microsoft.Http.dll

Microsoft.Http.Extension.dll

System.ServiceModel.Web.dll

Step 10

Program.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Configuration;
using Microsoft.Http;
using Microsoft.ServiceModel.Web;
using Microsoft.ServiceModel.Web.SpecializedServices;
using System.Runtime.Serialization;
using UtilityClasses;

namespace ConsoleTestProject
{
 class Program
 {
 static void Main(string[] args)
 {

uri = "<a href="http://localhost:3602/RestService.svc/">http://localhost:3602/RestService.svc/</a>";
 // Calling without parameter
 Console.WriteLine(AddWithoutParameter());
 Console.Read();
 //Calling with parameter
 NumberService obj = new NumberService() { Number1 = 7, Number2 = 2 };
 Console.WriteLine(AddWithParameter(obj));
 Console.Read();

}
 public static string  AddWithoutParameter()
 {
 using (HttpResponseMessage response = new HttpClient().Get(uri))
 {

 int res = response.Content.ReadAsDataContract<int>();
 return res.ToString();
 }
 }
 public static string  AddWithParameter(NumberService obj)
 {
 using (HttpResponseMessage  response = new HttpClient().Post(uri,HttpContentExtensions.CreateDataContract(obj)))
 {

 int res = response.Content.ReadAsDataContract<int>();
 return res.ToString();

}

}

}
 }
}

&nbsp;



There are two static methods

AddWithoutParameter() -> To Invoke HTTP Get on Service URI. {In Green}

AddWithParameter() -> To Invoke HTTP POST on Service URI. {In Yellow}

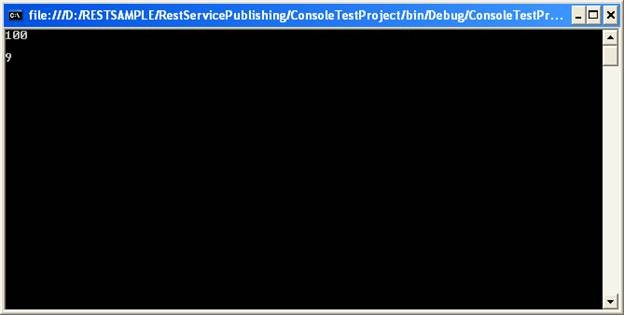

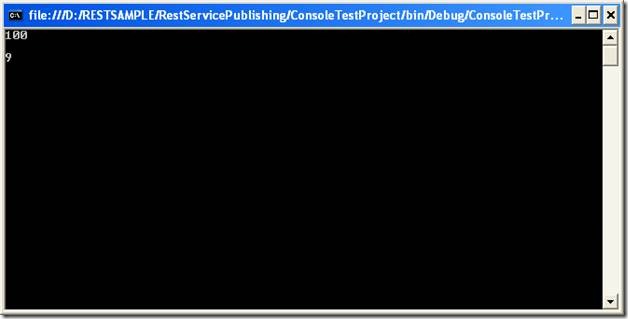

Output

clip_image019
